Infineon Technologies-TDB6HK124N16RRBOSA1 - Thyristors - SCRs - Modules Product Specifications and Latest Quotes

Structure:	Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode
Number of SCRs, Diodes:	3 SCRs
Voltage - Off State:	1.6 kV
Current - On State (It (AV)) (Max):	125 A
Current - On State (It (RMS)) (Max):	70 A
Voltage - Gate Trigger (Vgt) (Max):	2.5 V
Current - Gate Trigger (Igt) (Max):	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	650A @ 50Hz
Current - Hold (Ih) (Max):	200 mA
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Chassis Mount
Package / Case:	Module

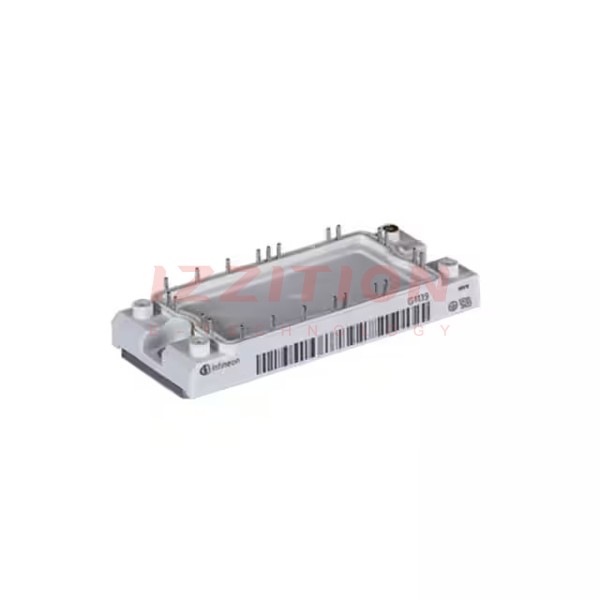

Infineon Technologies TDB6HK124N16RRBOSA1
