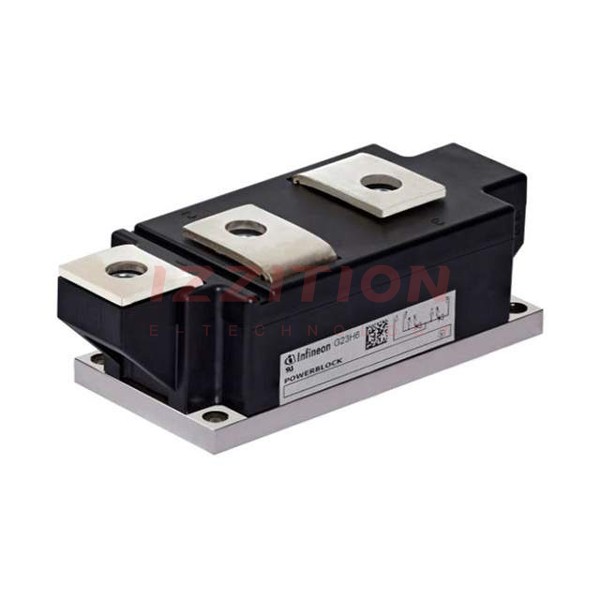

| Part Number | TD600N16KOFTIMHPSA1 | TD500N16KOFTIMHPSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Structure | Series Connection - SCR/Diode | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 1 SCR, 1 Diode | 1 SCR, 1 Diode |
| Voltage - Off State | 1.6 kV | 1.8 kV |
| Current - On State (It (AV)) (Max) | 600 A | 500 A |
| Current - On State (It (RMS)) (Max) | 1050 A | 900 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2.2 V |
| Current - Gate Trigger (Igt) (Max) | 250 mA | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 21000A @ 50Hz | 17000A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
