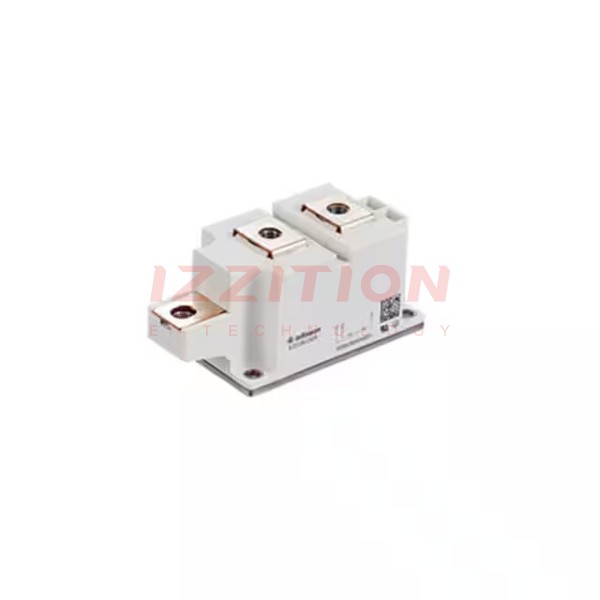

| Part Number | TD390N18SOFHPSA1 | TD190N18SOFHPSA1 | TD320N18SOFHPSA1 | TD390N16SOFHPSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| Structure | Series Connection - SCR/Diode | Series Connection - SCR/Diode | Series Connection - SCR/Diode | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 1 SCR, 1 Diode | 1 SCR, 1 Diode | 1 SCR, 1 Diode | 1 SCR, 1 Diode |
| Voltage - Off State | 1.8 kV | 1.8 kV | 1.8 kV | 1.6 kV |
| Current - On State (It (AV)) (Max) | 380 A | 190 A | 320 A | 380 A |
| Current - On State (It (RMS)) (Max) | 520 A | 275 A | 520 A | 520 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2.5 V | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA | 145 mA | 150 mA | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9500A @ 50Hz | 5200A @ 50Hz | 9500A @ 50Hz | 9500A @ 50Hz |
| Current - Hold (Ih) (Max) | 150 mA | 200 mA | 150 mA | 150 mA |
| Operating Temperature | -40°C ~ 125°C (TC) | -40°C ~ 125°C | -40°C ~ 130°C | -40°C ~ 125°C (TC) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
