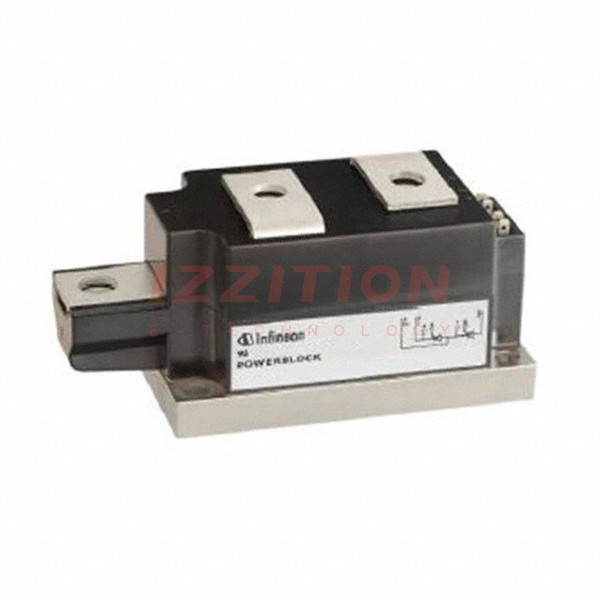

| Part Number | TD330N16KOFTIMHPSA1 | TT330N16KOFTIMHPSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Structure | Series Connection - SCR/Diode | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 2 SCRs | 2 SCRs |
| Voltage - Off State | 1.6 kV | 1.6 kV |
| Current - On State (It (AV)) (Max) | 330 A | 330 A |
| Current - On State (It (RMS)) (Max) | 520 A | 520 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 200 mA | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 12500A @ 50Hz | 12500A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA |
| Operating Temperature | -40°C ~ 130°C | -40°C ~ 130°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
