Home
All Products
Discrete Semiconductor Products
Thyristors - SCRs - Modules
TD285N16KOFHPSA2

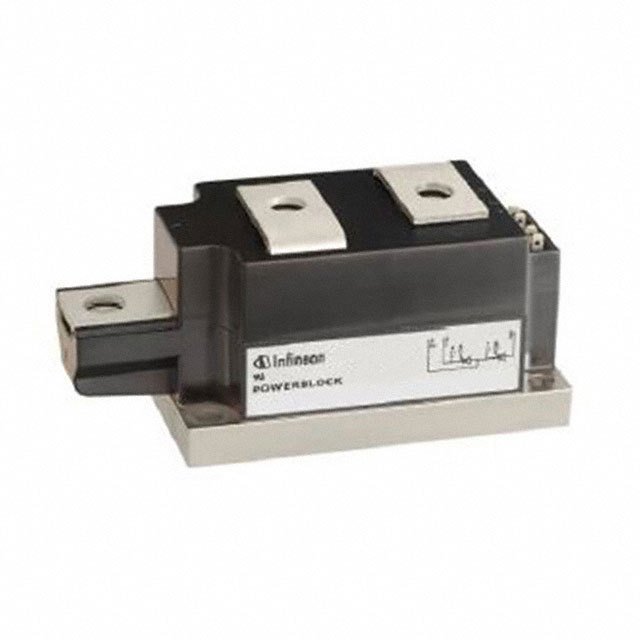

TD285N16KOFHPSA2 Image
×
Favorite
Compare
Add to RFQ
Share:
Infineon Technologies TD285N16KOFHPSA2
Manufacturer No:
TD285N16KOFHPSA2
Manufacturer:
Infineon Technologies
Package:
Tray
Datasheet:
TD285N16KOFHPSA2 Datasheet
ECAD Model:
-
Description:
SCR MODULE 1600V 520A MODULE
Delivery:
Payment:
Product Attributes
Structure:
Series Connection - SCR/Diode
Number of SCRs, Diodes:
1 SCR, 1 Diode
Voltage - Off State:
1.6 kV
Current - On State (It (AV)) (Max):
285 A
Current - On State (It (RMS)) (Max):
520 A
Voltage - Gate Trigger (Vgt) (Max):
2 V
Current - Gate Trigger (Igt) (Max):
200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):
12500A @ 50Hz
Current - Hold (Ih) (Max):
300 mA
Operating Temperature:
-40°C ~ 125°C
Mounting Type:
Chassis Mount
Package / Case:
Module
0
Remaining
View Similar
In Stock
UnitPrice:
$220.12
Quantity:
2
Please send RFQ , we will respond immediately.
