Please send RFQ , we will respond immediately.

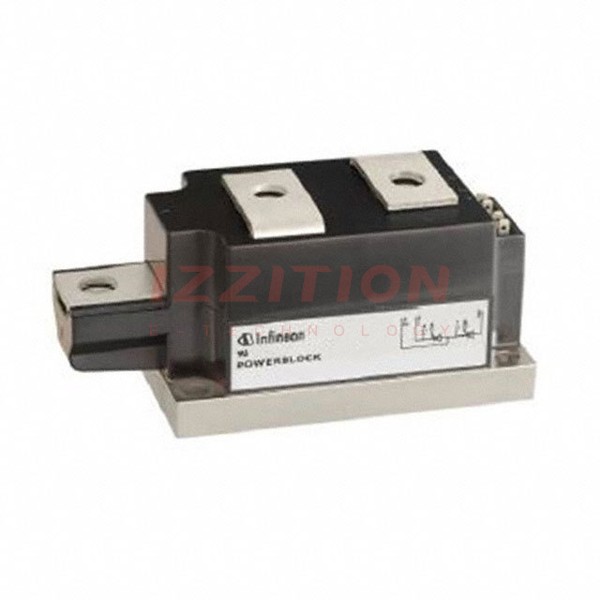

| Part Number | TD250N12KOFHPSA1 | TD250N16KOFHPSA1 | TD250N14KOFHPSA1 | TD250N18KOFHPSA1 | TD210N12KOFHPSA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Last Time Buy | Active | Last Time Buy | Active | Last Time Buy |
| Structure | Series Connection - SCR/Diode | Series Connection - SCR/Diode | Series Connection - SCR/Diode | Series Connection - SCR/Diode | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 1 SCR, 1 Diode | 1 SCR, 1 Diode | 1 SCR, 1 Diode | 1 SCR, 1 Diode | 1 SCR, 1 Diode |
| Voltage - Off State | 1.8 kV | 1.8 kV | 1.8 kV | 1.8 kV | 1.8 kV |
| Current - On State (It (AV)) (Max) | 250 A | 250 A | 250 A | 250 A | 261 A |
| Current - On State (It (RMS)) (Max) | 410 A | 410 A | 410 A | 410 A | 410 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 2 V | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 200 mA | 200 mA | 200 mA | 200 mA | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8000A @ 50Hz | 8000A @ 50Hz | 8000A @ 50Hz | 8000A @ 50Hz | 6600A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA | 300 mA | 300 mA | 300 mA |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module | Module |
