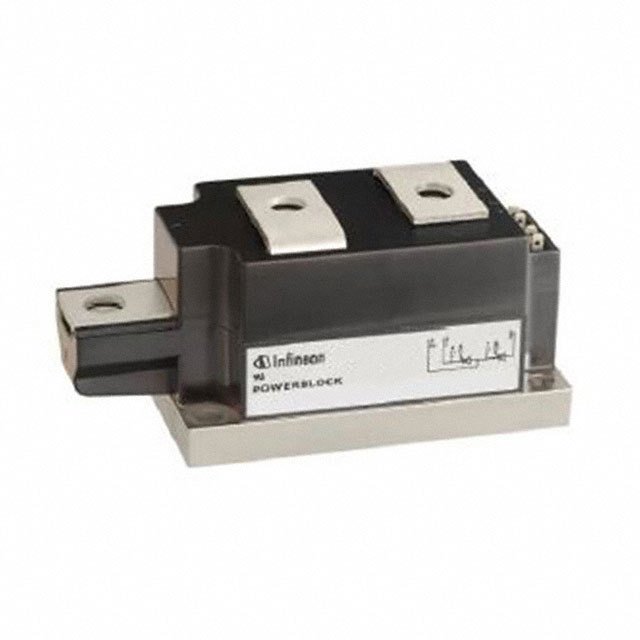

| Part Number | TD150N26KOFHPSA1 | TZ150N26KOFHPSA1 | TD150N24KOFHPSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| Structure | Series Connection - SCR/Diode | Single | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 1 SCR, 1 Diode | 1 SCR | 1 SCR, 1 Diode |
| Voltage - Off State | 2.6 kV | 2.6 kV | 2.6 kV |
| Current - On State (It (AV)) (Max) | 223 A | 223 A | 223 A |
| Current - On State (It (RMS)) (Max) | 350 A | 350 A | 350 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 200 mA | 200 mA | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 4500A @ 50Hz | 4500A @ 50Hz | 4500A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA | 300 mA |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
