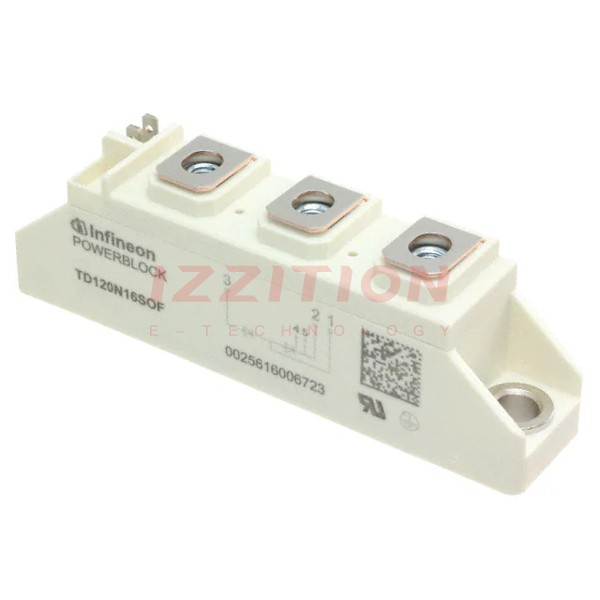

| Part Number | TD120N16SOFHPSA1 | TD320N16SOFHPSA1 | TT120N16SOFHPSA1 | TD160N16SOFHPSA1 | TD140N16SOFHPSA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active |
| Structure | Series Connection - SCR/Diode | Series Connection - SCR/Diode | Series Connection - All SCRs | Series Connection - SCR/Diode | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 1 SCR, 1 Diode | 1 SCR, 1 Diode | 2 SCRs | 1 SCR, 1 Diode | 1 SCR, 1 Diode |
| Voltage - Off State | 1.6 kV | 1.6 kV | 1.6 kV | 1.6 kV | 1.6 kV |
| Current - On State (It (AV)) (Max) | 119 A | 320 A | 119 A | 160 A | 140 A |
| Current - On State (It (RMS)) (Max) | 190 A | 520 A | 190 A | 275 A | 220 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V | 2 V | 2.5 V | 2.5 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 100 mA | 150 mA | 100 mA | 145 mA | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - | - | - | 5200A @ 50Hz | 4700A @ 50Hz |
| Current - Hold (Ih) (Max) | 250 mA | 150 mA | 250 mA | 200 mA | 400 mA |
| Operating Temperature | 130°C (TJ) | 130°C (TJ) | -40°C ~ 130°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module | Module |
