| Part Number | TC297TX128F300NBCKXUMA1 | TC297TX128F300NBCKXUMA2 | TC299TX128F300NBCKXUMA1 | TC297TX128F300SBCKXUMA1 | TC297TA128F300NBCKXUMA1 | TC297TP128F300NBCKXUMA1 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Discontinued at Digi-Key | Active | Active |
| Core Processor | TriCore™ | TriCore™ | TriCore™ | TriCore™ | TriCore™ | TriCore™ |
| Core Size | 32-Bit Tri-Core | 32-Bit Tri-Core | 32-Bit Tri-Core | 32-Bit Tri-Core | 32-Bit Tri-Core | 32-Bit Tri-Core |
| Speed | 300MHz | 300MHz | 300MHz | 300MHz | 300MHz | 300MHz |
| Connectivity | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT |
| Peripherals | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT |
| Number of I/O | 263 | 263 | 263 | 169 | 169 | 263 |
| Program Memory Size | 8MB (8M x 8) | 8MB (8M x 8) | 8MB (8M x 8) | 8MB (8M x 8) | 8MB (8M x 8) | 8MB (8M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 128K x 8 | 768K x 8 | 384K x 8 | 384K x 8 | 384K x 8 | 768K x 8 |
| RAM Size | 2.7M x 8 | 2.7M x 8 | 728K x 8 | 728K x 8 | 2.75M x 8 | 240K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.3V, 5V | 2.97V ~ 5.5V | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V | 1.17V ~ 1.43V, 2.97V ~ 5.5V |
| Data Converters | A/D 84x12b, 10 x Sigma-Delta | A/D 94x12b SAR, Sigma-Delta | A/D 84x12b, 10 x Sigma-Delta | A/D 84x12b, 10 x Sigma-Delta | A/D 60x12b, 10 x Sigma-Delta | A/D 60x12b, 10 x Sigma-Delta |
| Oscillator Type | External | External | External | External | External | External |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

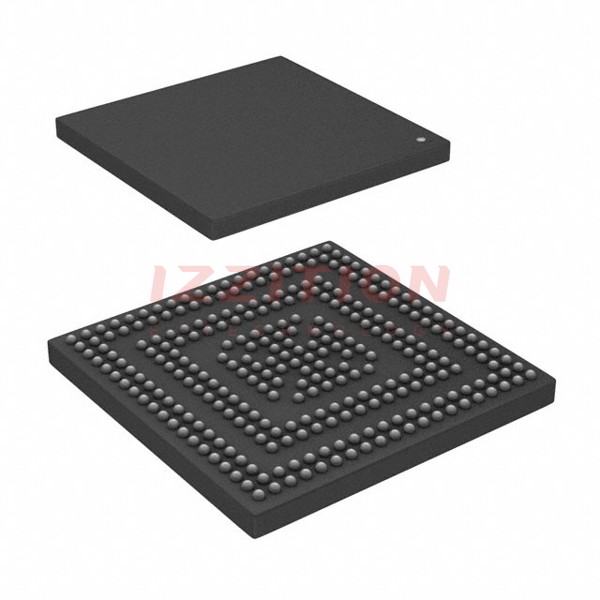

| Package / Case | 292-LFBGA | 292-LFBGA | 516-LFBGA | 292-LFBGA | 292-LFBGA | 292-LFBGA |
| Supplier Device Package | PG-LFBGA-292-6 | PG-LFBGA-292-6 | PG-LFBGA-516-5 | PG-LFBGA-292-6 | PG-LFBGA-292-6 | PG-LFBGA-292-6 |
