| Part Number | TC264D40F200NBCKXUMA1 | TC264D40F200WBCKXUMA1 | TC264D40F200NBCKXUMA2 | TC265D40F200NBCKXUMA1 | TC264D40F200NBCLXUMA1 | TC267D40F200NBCKXUMA1 | TC264DA40F200NBCKXUMA1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key |
| Core Processor | TriCore™ | TriCore™ | TriCore™ | TriCore™ | TriCore™ | TriCore™ | TriCore™ |
| Core Size | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core |
| Speed | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz |
| Connectivity | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT | ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI5, QSPI, SENT |
| Peripherals | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT |
| Number of I/O | 88 | 88 | 88 | 112 | 88 | 88 | 88 |
| Program Memory Size | 2.5MB (2.5M x 8) | 2.5MB (2.5M x 8) | 2.5MB (2.5M x 8) | 2.5MB (2.5M x 8) | 2.5MB (2.5M x 8) | 2.5MB (2.5M x 8) | 2.5MB (2.5M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 96K x 8 | 96K x 8 | 96K x 8 | 96K x 8 | 96K x 8 | 96K x 8 | 96K x 8 |
| RAM Size | 240K x 8 | 240K x 8 | 240K x 8 | 240K x 8 | 240K x 8 | 240K x 8 | 752K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V |
| Data Converters | A/D 40x12b, 3 x Sigma-Delta | A/D 40x12b, 3 x Sigma-Delta | A/D 48x12b SAR, 3 x Sigma-Delta | A/D 50x12b, 3 x Sigma-Delta | A/D 48x12b SAR, 3 x Sigma-Delta | A/D 48x12b SAR, 3 x Sigma-Delta | A/D 40x12b, 4 x Sigma-Delta |
| Oscillator Type | External | External | External | External | External | External | External |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

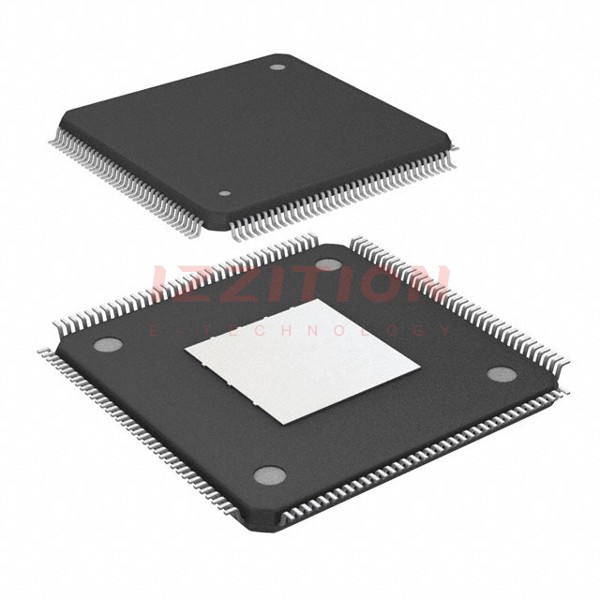

| Package / Case | 144-LQFP Exposed Pad | 144-LQFP Exposed Pad | 144-LQFP Exposed Pad | 176-LQFP Exposed Pad | 144-LQFP Exposed Pad | 292-LFBGA | 144-LQFP Exposed Pad |
| Supplier Device Package | PG-LQFP-144-22 | PG-LQFP-144-22 | PG-LQFP-144-22 | PG-LQFP-176-22 | PG-LQFP-144-22 | PG-LFBGA-292-6 | PG-LQFP-144-22 |
