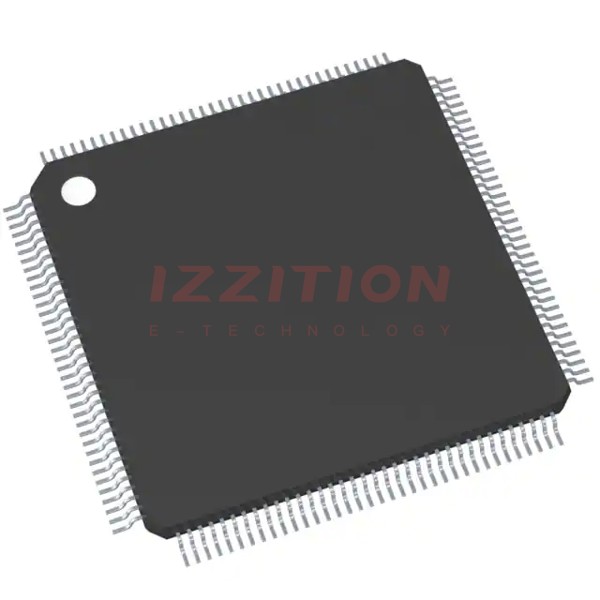

| Part Number | TC224L16F133NACLXUMA1 | TC222L16F133NACLXUMA1 | TC223L16F133NACLXUMA1 | TC224L16F133FACLXUMA1 | TC224L16F133NACKXUMA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Discontinued at Digi-Key | Active |
| Core Processor | TriCore™ | TriCore™ | TriCore™ | TriCore™ | TriCore™ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 133MHz | 133MHz | 133MHz | 133MHz | 133MHz |
| Connectivity | CANbus, FlexRay, LINbus, QSPI | CANbus, FlexRay, LINbus, QSPI | CANbus, FlexRay, LINbus, QSPI | CANbus, FlexRay, LINbus, QSPI | CANbus, FlexRay, LINbus, QSPI |
| Peripherals | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT |
| Number of I/O | 120 | 59 | 78 | 120 | 120 |
| Program Memory Size | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 128K x 8 | 128K x 8 | 96K x 8 | 128K x 8 | 96K x 8 |
| RAM Size | 96K x 8 | 96K x 8 | 96K x 8 | 96K x 8 | 96K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Data Converters | A/D 24x12b | A/D 14x12b | A/D 24x12b | A/D 24x12b | A/D 24x12b SAR |
| Oscillator Type | External | External | External | External | External |
| Operating Temperature | -40°C ~ 150°C (TA) | -40°C ~ 150°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 144-LQFP Exposed Pad | 80-TQFP Exposed Pad | 100-TQFP Exposed Pad | 144-LQFP Exposed Pad | 144-LQFP Exposed Pad |
| Supplier Device Package | PG-TQFP-144-27 | PG-TQFP-80-7 | PG-TQFP-100-23 | PG-TQFP-144-27 | PG-TQFP-144-27 |
