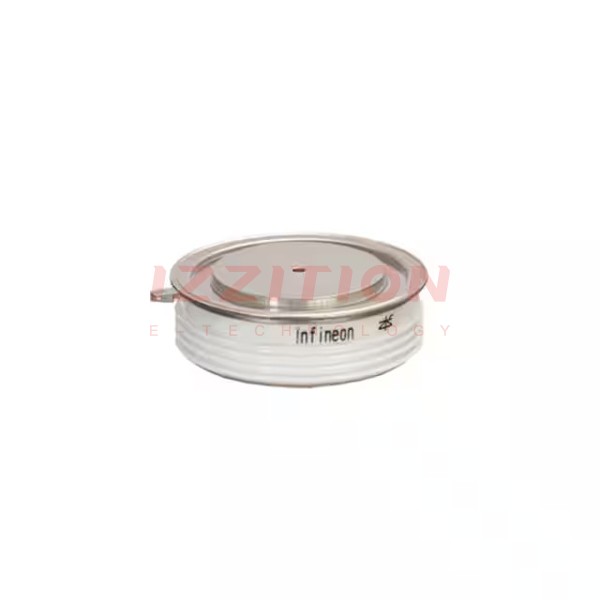

| Part Number | T730N40TOFVTXPSA1 | T730N42TOFVTXPSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| Structure | Single | Single |
| Number of SCRs, Diodes | 1 SCR | 1 SCR |
| Voltage - Off State | 4.2 kV | 4.2 kV |
| Current - On State (It (AV)) (Max) | 730 A | 730 A |
| Current - On State (It (RMS)) (Max) | 1840 A | 1840 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V | 2.5 V |
| Current - Gate Trigger (Igt) (Max) | 300 mA | 300 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 17600A @ 50Hz | 17600A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA |
| Operating Temperature | -40°C ~ 120°C | -40°C ~ 120°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | TO-200AC | TO-200AC |
