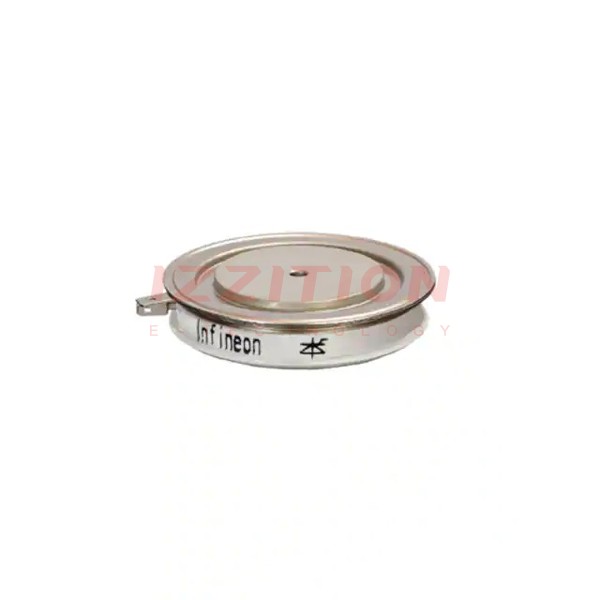

| Part Number | T420N18TOFXPSA1 | T430N18TOFXPSA1 | T720N18TOFXPSA1 | T420N14TOFXPSA1 | T420N16TOFXPSA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active |
| Structure | Single | Single | Single | Single | Single |
| Number of SCRs, Diodes | 1 SCR | 1 SCR | 1 SCR | 1 SCR | 1 SCR |
| Voltage - Off State | 1.8 kV | 1.8 kV | 1.8 kV | 1.8 kV | 1.8 kV |
| Current - On State (It (AV)) (Max) | 424 A | 433 A | 720 A | 424 A | 424 A |
| Current - On State (It (RMS)) (Max) | 750 A | 700 A | 1500 A | 750 A | 750 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 1.5 V | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 200 mA | 200 mA | 250 mA | 200 mA | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 7200A @ 50Hz | 5200A @ 50Hz | 14500A @ 50Hz | 7200A @ 50Hz | 7200A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA | 300 mA | 300 mA | 300 mA |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | DO-200AA, A-PUK | TO-200AA | DO-200AB, B-PUK | DO-200AA, A-PUK | DO-200AA, A-PUK |
