Please send RFQ , we will respond immediately.

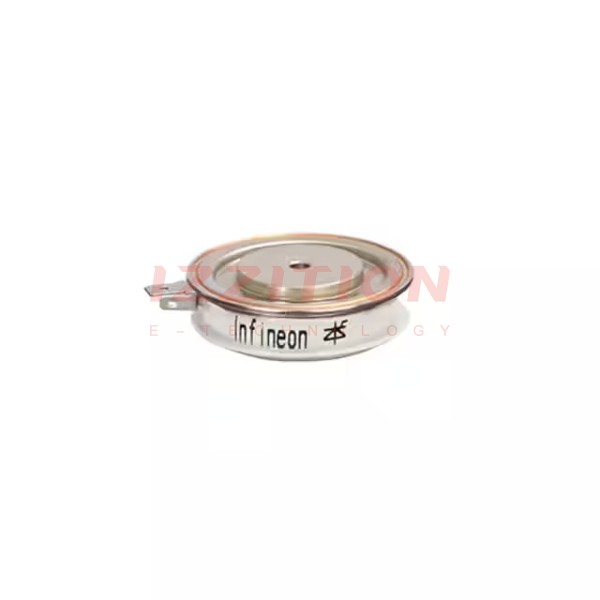

| Part Number | T390N12TOFXPSA1 | T390N14TOFXPSA1 | T390N16TOFXPSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Last Time Buy | Active | Active |
| Structure | Single | Single | Single |
| Number of SCRs, Diodes | 1 SCR | 1 SCR | 1 SCR |
| Voltage - Off State | 1.6 kV | 1.6 kV | 1.6 kV |
| Current - On State (It (AV)) (Max) | 381 A | 381 A | 381 A |
| Current - On State (It (RMS)) (Max) | 600 A | 600 A | 600 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA | 150 mA | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 4900A @ 50Hz | 4900A @ 50Hz | 4900A @ 50Hz |
| Current - Hold (Ih) (Max) | 200 mA | 200 mA | 200 mA |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | TO-200AA | TO-200AA | TO-200AA |
