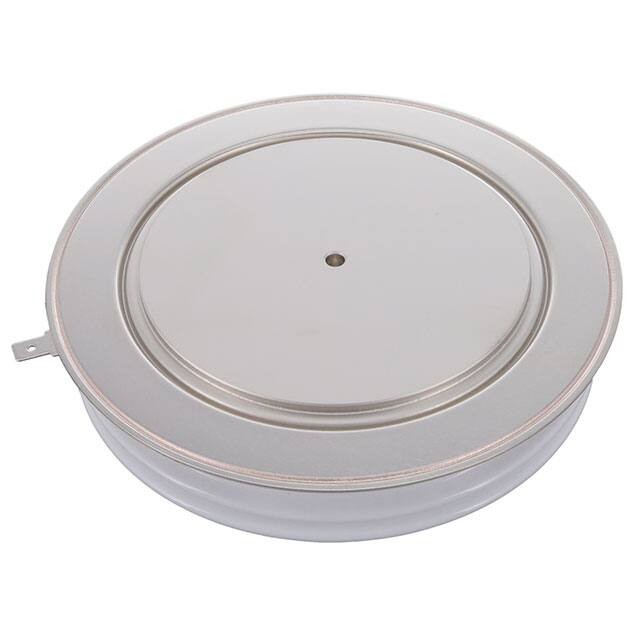

| Part Number | T3800N18TOFVTXPSA1 | T3800N16TOFVTXPSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Structure | Single | Single |
| Number of SCRs, Diodes | 1 SCR | 1 SCR |
| Voltage - Off State | 1.8 kV | 1.8 kV |
| Current - On State (It (AV)) (Max) | 3800 A | 3800 A |
| Current - On State (It (RMS)) (Max) | 5970 A | 5970 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V | 2.5 V |
| Current - Gate Trigger (Igt) (Max) | 250 mA | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 63000A @ 50Hz | 63000A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA |
| Operating Temperature | 135°C (TJ) | 135°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | TO-200AE | TO-200AE |
