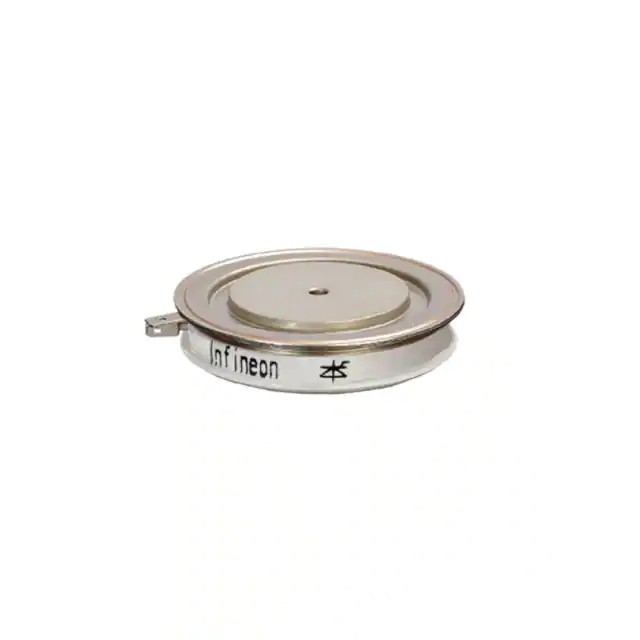

| Part Number | T360N28TOFXPSA1 | T360N22TOFXPSA1 | T360N24TOFXPSA1 | T360N26TOFXPSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete | Obsolete | Active |
| Structure | Single | Single | Single | Single |
| Number of SCRs, Diodes | 1 SCR | 1 SCR | 1 SCR | 1 SCR |
| Voltage - Off State | 2.8 kV | 2.6 kV | 2.6 kV | 2.6 kV |
| Current - On State (It (AV)) (Max) | 360 A | 360 A | 360 A | 360 A |
| Current - On State (It (RMS)) (Max) | 550 A | 550 A | 550 A | 550 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 200 mA | 200 mA | 200 mA | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 5000A @ 50Hz | 5000A @ 50Hz | 5000A @ 50Hz | 5000A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA | 300 mA | 300 mA |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | DO-200AA, A-PUK | DO-200AA, A-PUK | DO-200AA, A-PUK | DO-200AA, A-PUK |
