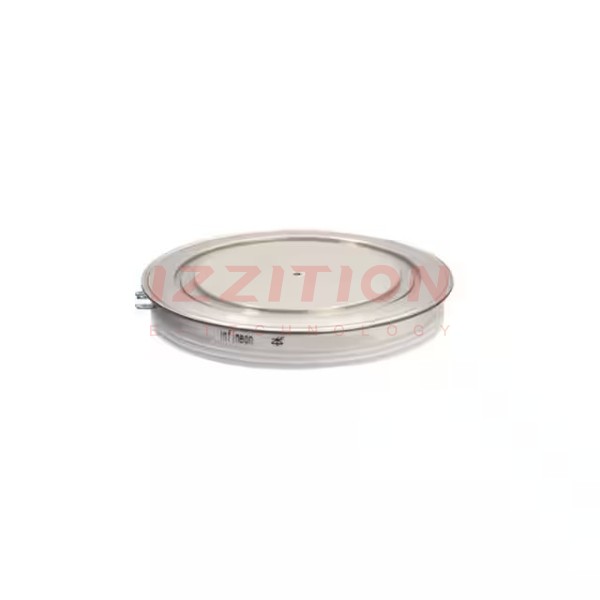

| Part Number | T2251N80TOHXPSA1 | T2251N70TOHXPSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Structure | Single | Single |
| Number of SCRs, Diodes | 1 SCR | 1 SCR |
| Voltage - Off State | 8 kV | 8 kV |
| Current - On State (It (AV)) (Max) | 3140 A | 3140 A |
| Current - On State (It (RMS)) (Max) | 3550 A | 3550 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V | 2.5 V |
| Current - Gate Trigger (Igt) (Max) | 350 mA | 350 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 67000A @ 50Hz | 67000A @ 50Hz |
| Current - Hold (Ih) (Max) | 350 mA | 350 mA |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | TO-200AF | TO-200AF |
