Please send RFQ , we will respond immediately.

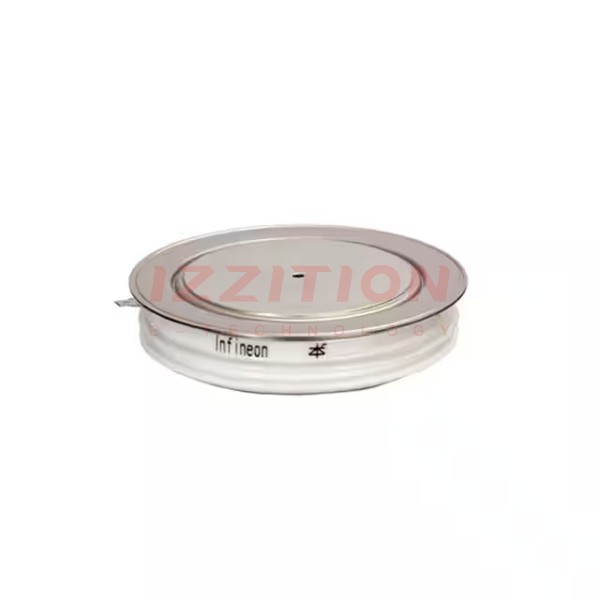

| Part Number | T2160N28TOFVTXPSA1 | T2160N20TOFVTXPSA1 | T2160N22TOFVTXPSA1 | T2160N24TOFVTXPSA1 | T2160N26TOFVTXPSA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active |
| Structure | Single | Single | Single | Single | Single |
| Number of SCRs, Diodes | 1 SCR | 1 SCR | 1 SCR | 1 SCR | 1 SCR |
| Voltage - Off State | 2.8 kV | 2.8 kV | 2.8 kV | 2.8 kV | 2.8 kV |
| Current - On State (It (AV)) (Max) | 2400 A | 2400 A | 2400 A | 2400 A | 2400 A |
| Current - On State (It (RMS)) (Max) | 4600 A | 4600 A | 4600 A | 4600 A | 4600 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V | 3 V | 3 V | 3 V | 3 V |
| Current - Gate Trigger (Igt) (Max) | 300 mA | 300 mA | 300 mA | 300 mA | 300 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 44000A @ 50Hz | 44000A @ 50Hz | 44000A @ 50Hz | 44000A @ 50Hz | 44000A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA | 300 mA | 300 mA | 300 mA |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | DO-200AE | DO-200AE | DO-200AE | DO-200AE | DO-200AE |
