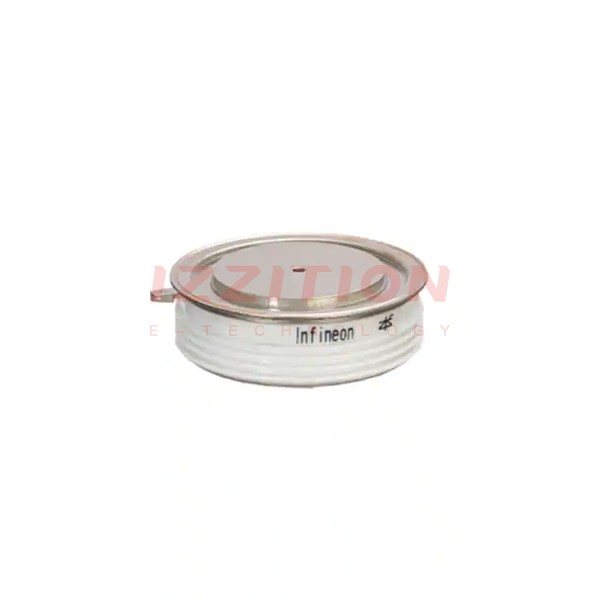

| Part Number | T1500N18TOFVTXPSA1 | T1900N18TOFVTXPSA1 | T1500N14TOFVTXPSA1 | T1500N16TOFVTXPSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| Structure | Single | Single | Single | Single |
| Number of SCRs, Diodes | 1 SCR | 1 SCR | 1 SCR | 1 SCR |
| Voltage - Off State | 1.8 kV | 1.8 kV | 1.8 kV | 1.8 kV |
| Current - On State (It (AV)) (Max) | 1500 A | 1810 A | 1500 A | 1500 A |
| Current - On State (It (RMS)) (Max) | 3500 A | 2840 A | 3500 A | 3500 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 350 mA | 250 mA | 250 mA | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 39000A @ 50Hz | 39000A @ 50Hz | 39000A @ 50Hz | 39000A @ 50Hz |
| Current - Hold (Ih) (Max) | 500 mA | 500 mA | 500 mA | 500 mA |
| Operating Temperature | -40°C ~ 125°C | 135°C (TJ) | -40°C ~ 140°C | -40°C ~ 140°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | DO-200AB, B-PUK | TO-200AC | DO-200AB, B-PUK | DO-200AB, B-PUK |
