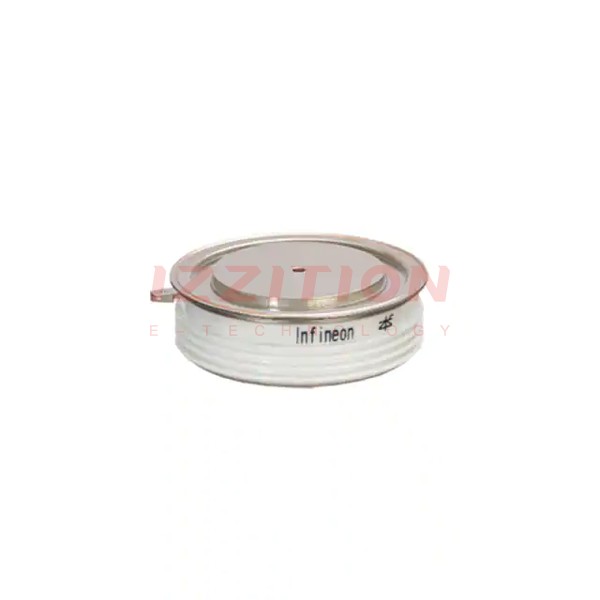

| Part Number | T1220N28TOFVTXPSA1 | T1220N20TOFVTXPSA1 | T1220N22TOFVTXPSA1 | T1220N24TOFVTXPSA1 | T1220N26TOFVTXPSA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Active |
| Structure | Single | Single | Single | Single | Single |
| Number of SCRs, Diodes | 1 SCR | 1 SCR | 1 SCR | 1 SCR | 1 SCR |
| Voltage - Off State | 2.8 kV | 2.8 kV | 2.8 kV | 2.8 kV | 2.8 kV |
| Current - On State (It (AV)) (Max) | 1220 A | 1220 A | 1220 A | 1220 A | 1220 A |
| Current - On State (It (RMS)) (Max) | 2625 A | 2625 A | 2625 A | 2625 A | 2625 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 2 V | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 250 mA | 250 mA | 250 mA | 250 mA | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 25000A @ 50Hz | 25000A @ 50Hz | 25000A @ 50Hz | 25000A @ 50Hz | 25000A @ 50Hz |
| Current - Hold (Ih) (Max) | 500 mA | 500 mA | 500 mA | 500 mA | 500 mA |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | TO-200AC | TO-200AC | TO-200AC | TO-200AC | TO-200AC |
