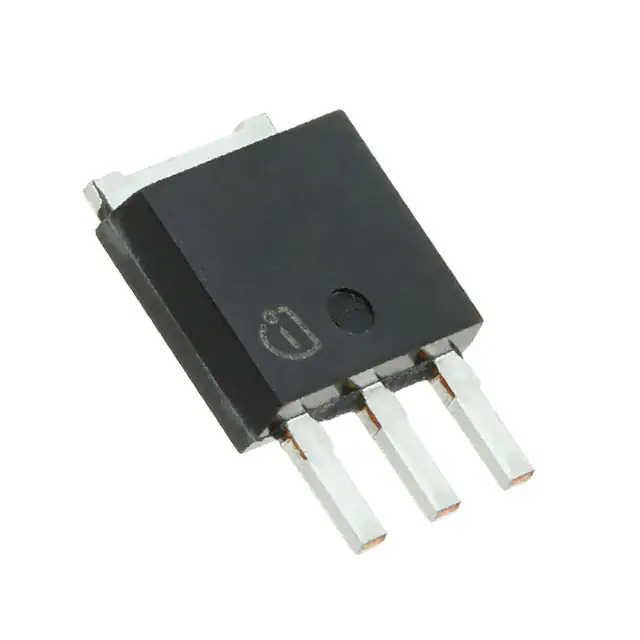

| Part Number | SPS02N60C3 | SPS04N60C3 | SPS03N60C3 | SPS01N60C3 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 600 V | 600 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 1.8A (Tc) | 4.5A (Tc) | 3.2A (Tc) | 800mA (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 1.1A, 10V | 950mOhm @ 2.8A, 10V | 1.4Ohm @ 2A, 10V | 6Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 80µA | 3.9V @ 200µA | 3.9V @ 135µA | 3.9V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12.5 nC @ 10 V | 25 nC @ 10 V | 17 nC @ 10 V | 5 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 200 pF @ 25 V | 490 pF @ 25 V | 400 pF @ 25 V | 100 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 25W (Tc) | 50W (Tc) | 38W (Tc) | 11W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PG-TO251-3-11 | PG-TO251 | PG-TO251-3-11 | PG-TO251-3-11 |
| Package / Case | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak |
