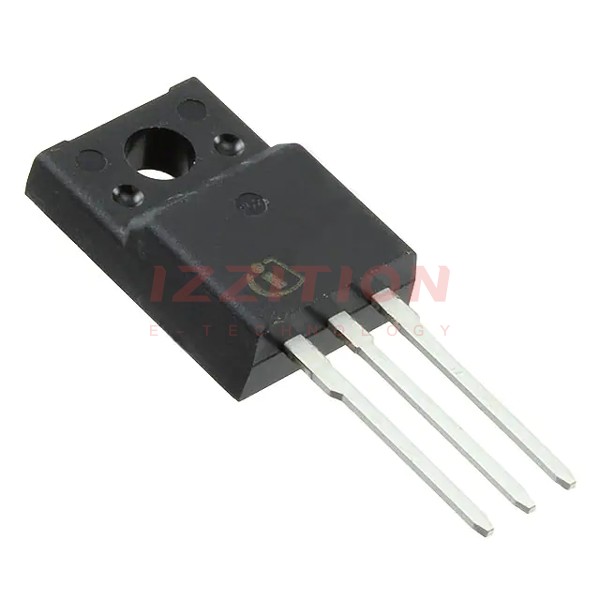

| Part Number | SPA04N60C3XKSA1 | SPA04N80C3XKSA1 | SPA07N60C3XKSA1 | SPA06N60C3XKSA1 | SPA04N50C3XKSA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 800 V | 650 V | 650 V | 560 V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Tc) | 4A (Tc) | 7.3A (Tc) | 6.2A (Tc) | 4.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 950mOhm @ 2.8A, 10V | 1.3Ohm @ 2.5A, 10V | 600mOhm @ 4.6A, 10V | 750mOhm @ 3.9A, 10V | 950mOhm @ 2.8A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 200µA | 3.9V @ 240µA | 3.9V @ 250µA | 3.9V @ 260µA | 3.9V @ 200µA |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 10 V | 31 nC @ 10 V | 27 nC @ 10 V | 31 nC @ 10 V | 22 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 490 pF @ 25 V | 570 pF @ 100 V | 790 pF @ 25 V | 620 pF @ 25 V | 470 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 31W (Tc) | 38W (Tc) | 32W (Tc) | 32W (Tc) | 31W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PG-TO220-3-31 | PG-TO220-3-31 | PG-TO220-3-31 | PG-TO220-3-31 | PG-TO220-3-31 |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
