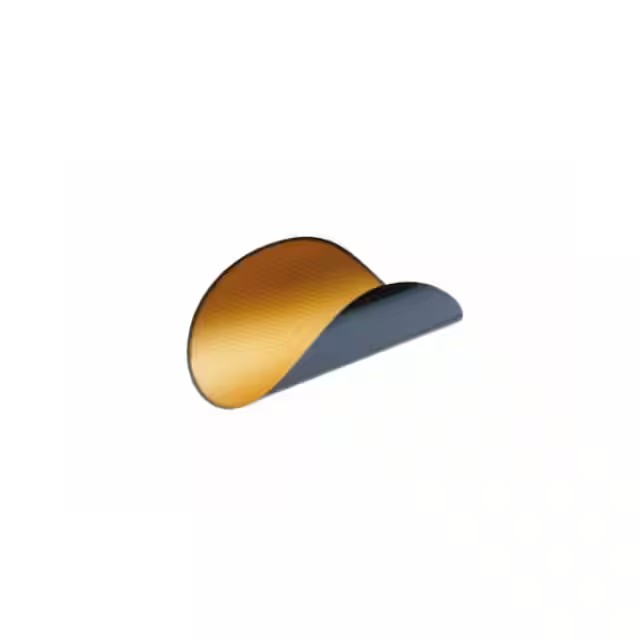

| Part Number | SIGC81T60NCX1SA5 | SIGC81T60NCX1SA3 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| IGBT Type | NPT | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 100 A | 100 A |
| Current - Collector Pulsed (Icm) | 300 A | 300 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 100A | 2.5V @ 15V, 100A |
| Power - Max | - | - |
| Switching Energy | - | - |
| Input Type | Standard | Standard |
| Gate Charge | - | - |
| Td (on/off) @ 25°C | 95ns/200ns | 95ns/200ns |
| Test Condition | 300V, 100A, 2.2Ohm, 15V | 300V, 100A, 2.2Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Die | Die |
| Supplier Device Package | Die | Die |
