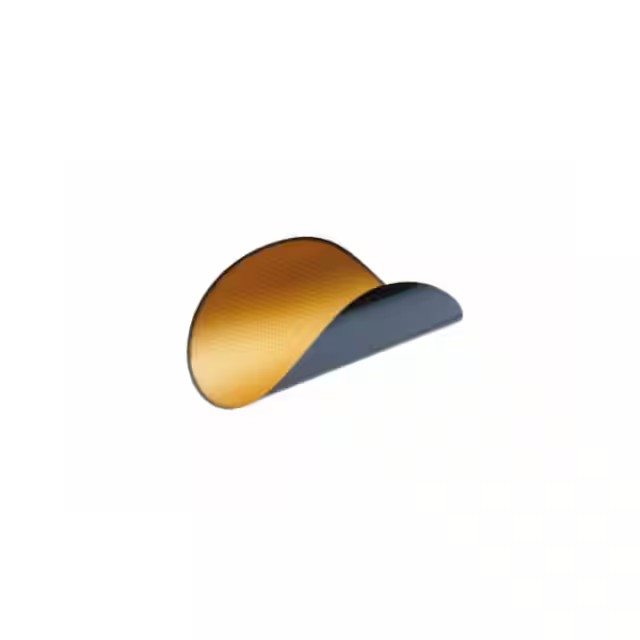

| Part Number | SIGC76T60R3EX7SA1 | SIGC76T60R3EX1SA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 150 A | 150 A |
| Current - Collector Pulsed (Icm) | 450 A | 450 A |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 150A | 1.9V @ 15V, 150A |
| Power - Max | - | - |
| Switching Energy | - | - |
| Input Type | Standard | Standard |
| Gate Charge | - | - |
| Td (on/off) @ 25°C | - | - |
| Test Condition | - | - |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Die | Die |
| Supplier Device Package | Die | Die |
