Infineon Technologies-SIGC121T60NR2CX1SA2 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	NPT
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	150 A
Current - Collector Pulsed (Icm):	450 A
Vce(on) (Max) @ Vge, Ic:	2.5V @ 15V, 150A
Power - Max:	-
Switching Energy:	-
Input Type:	Standard
Gate Charge:	-
Td (on/off) @ 25°C:	125ns/225ns
Test Condition:	300V, 150A, 1.5Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	Die
Supplier Device Package:	Die

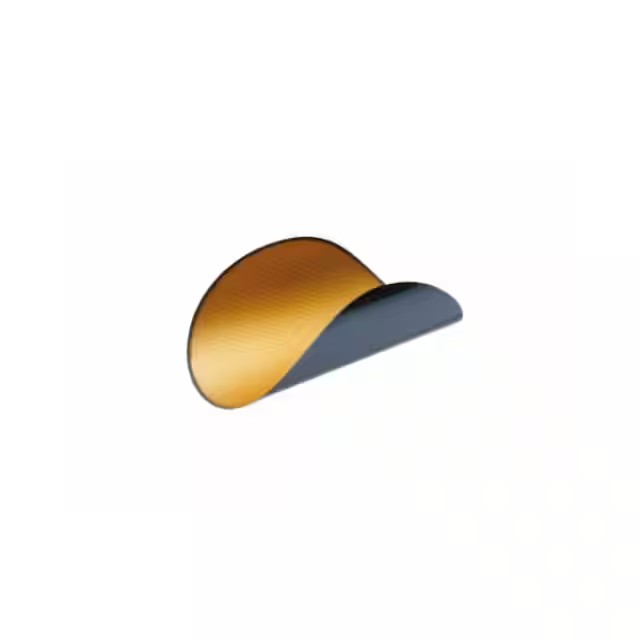

Infineon Technologies SIGC121T60NR2CX1SA2
