| Part Number | S6E2H14G0AGB3000A | S6E2H44G0AGB3000A | S6E2HE4G0AGB3000A | S6E2H16G0AGB3000A | S6E2HG4G0AGB3000A |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 160MHz | 160MHz | 160MHz | 160MHz | 160MHz |
| Connectivity | CSIO, EBI/EMI, I²C, LINbus, UART/USART | CANbus, CSIO, EBI/EMI, I²C, LINbus, UART/USART | CSIO, EBI/EMI, I²C, LINbus, SD, UART/USART | CSIO, EBI/EMI, I²C, LINbus, UART/USART | CANbus, CSIO, EBI/EMI, I²C, LINbus, SD, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 100 | 100 | 100 | 100 | 100 |
| Program Memory Size | 288KB (288K x 8) | 288KB (288K x 8) | 288KB (288K x 8) | 544KB (544K x 8) | 288KB (288K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 32K x 8 | 32K x 8 | 32K x 8 | 64K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

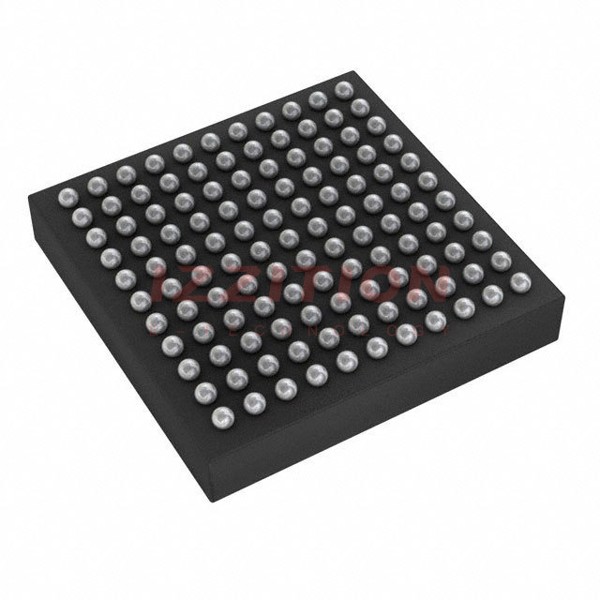

| Package / Case | 121-TFBGA | 121-TFBGA | 121-TFBGA | 121-TFBGA | 121-TFBGA |
| Supplier Device Package | 121-FBGA (6x6) | 121-FBGA (6x6) | 121-FBGA (6x6) | 121-FBGA (6x6) | 121-FBGA (6x6) |
