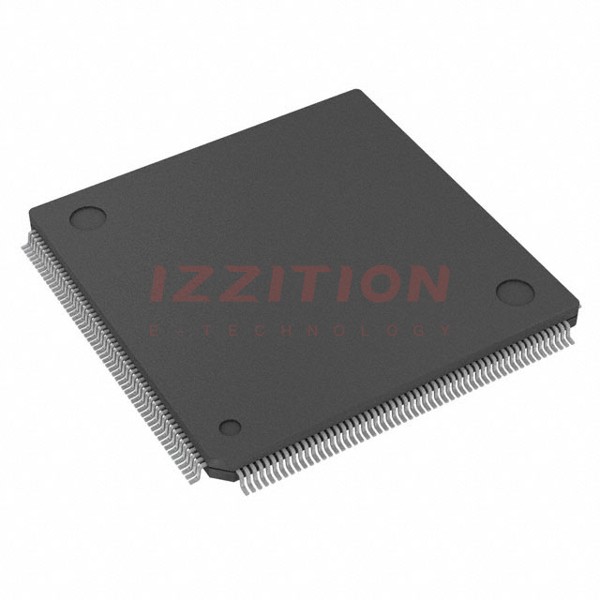

| Part Number | S6E2C58L0AGL2000A | S6E2C5AL0AGL2000A | S6E2C59L0AGL2000A | S6E2CC8L0AGL2000A | S6E2C18L0AGL2000A | S6E2C28L0AGL2000A | S6E2C38L0AGL2000A | S6E2C48L0AGL2000A |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz |
| Connectivity | CANbus, CSIO, EBI/EMI, I²C, LINbus, SD, SPI, UART/USART, USB | CANbus, CSIO, EBI/EMI, I²C, LINbus, SD, SPI, UART/USART, USB | CANbus, CSIO, EBI/EMI, I²C, LINbus, SD, SPI, UART/USART, USB | CANbus, CSIO, EBI/EMI, Ethernet, I²C, LINbus, SD, SPI, UART/USART, USB | CSIO, EBI/EMI, I²C, LINbus, SD, SPI, UART/USART, USB | CSIO, EBI/EMI, Ethernet, I²C, LINbus, SD, SPI, UART/USART, USB | CSIO, EBI/EMI, I²C, LINbus, SD, SPI, UART/USART, USB | CANbus, CSIO, EBI/EMI, I²C, LINbus, SD, SPI, UART/USART |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT |
| Number of I/O | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 |
| Program Memory Size | 1MB (1M x 8) | 2MB (2M x 8) | 1.5MB (1.5M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - |
| RAM Size | 128K x 8 | 256K x 8 | 192K x 8 | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 32x12b; D/A 2x12b | A/D 32x12b; D/A 2x12b | A/D 32x12b; D/A 2x12b | A/D 32x12b; D/A 2x12b | A/D 32x12b; D/A 2x12b | A/D 32x12b; D/A 2x12b | A/D 32x12b; D/A 2x12b | A/D 32x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 216-LQFP | 216-LQFP | 216-LQFP | 216-LQFP | 216-LQFP | 216-LQFP | 216-LQFP | 216-LQFP |
| Supplier Device Package | 216-LQFP (24x24) | 216-LQFP (24x24) | 216-LQFP (24x24) | 216-LQFP (24x24) | 216-LQFP (24x24) | 216-LQFP (24x24) | 216-LQFP (24x24) | 216-LQFP (24x24) |
