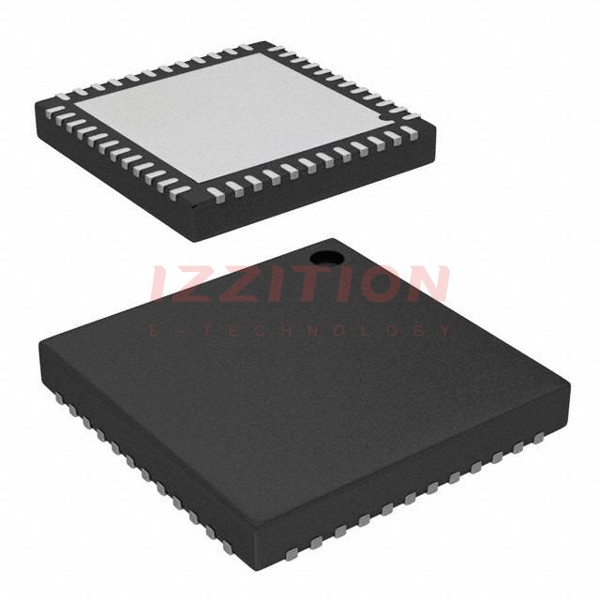

| Part Number | S6E1A11C0AGN20000 | S6E1A11C0AGV20000 | S6E1A12C0AGN20000 | S6E1C11C0AGN20000 | S6E1A11C0AGN2B000 | S6E1A11C0AGF20000 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz |
| Connectivity | CSIO, I²C, LINbus, UART/USART | CSIO, I²C, LINbus, UART/USART | CSIO, I²C, LINbus, UART/USART | CSIO, I²C, LINbus, SmartCard, UART/USART | CSIO, I²C, LINbus, UART/USART | CSIO, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | I²S, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 37 | 37 | 37 | 38 | 37 | 37 |
| Program Memory Size | 56KB (56K x 8) | 56KB (56K x 8) | 88KB (88K x 8) | 64KB (64K x 8) | 56KB (56K x 8) | 56KB (56K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 6K x 8 | 6K x 8 | 6K x 8 | 12K x 8 | 6K x 8 | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 1.65V ~ 3.6V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 8x12b | A/D 8x12b | A/D 8x12b | A/D 8x12b | A/D 8x12b | A/D 8x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-WFQFN Exposed Pad | 48-LQFP | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 52-LQFP |
| Supplier Device Package | 48-QFN (7x7) | 48-LQFP (7x7) | 48-QFN (7x7) | 48-QFN (7x7) | 48-QFN (7x7) | 52-LQFP (10x10) |
