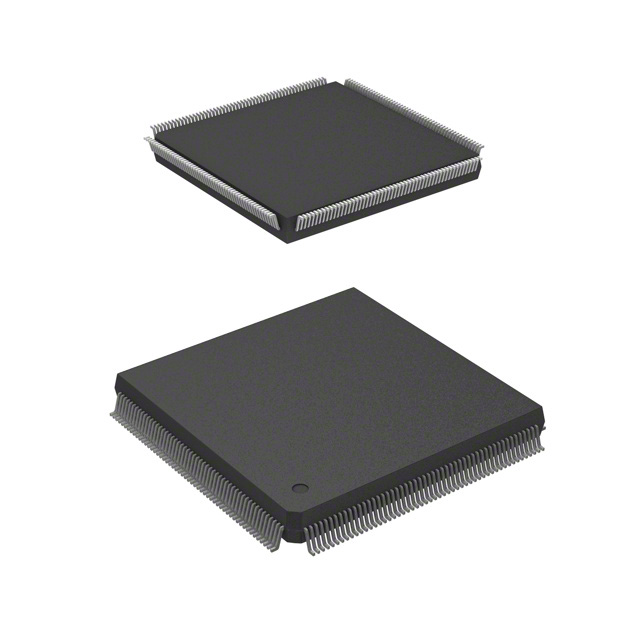

| Part Number | MB91F594BSPMC-GSK5E1 | MB91F594BSPMC-GSK5E2 | MB91F591BSPMC-GSK5E1 | MB91F592BSPMC-GSK5E1 | MB91F594ASPMC-GSK5E1 | MB91F594BHPMC-GSK5E1 | MB91F594BHSPMC-GSK5E1 | MB91F594BPMC-GSK5E1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Cypress Semiconductor Corp | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Core Processor | FR81S | FR81S | FR81S | FR81S | FR81S | FR81S | FR81S | FR81S |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 80MHz | 80MHz | 80MHz | 80MHz | 80MHz | 80MHz | 80MHz | 80MHz |
| Connectivity | CANbus, CSIO, EBI/EMI, LINbus, UART/USART | CANbus, CSIO, EBI/EMI, LINbus, UART/USART | CANbus, CSIO, EBI/EMI, LINbus, UART/USART | CANbus, CSIO, EBI/EMI, LINbus, UART/USART | CANbus, CSIO, EBI/EMI, LINbus, UART/USART | CANbus, CSIO, EBI/EMI, LINbus, UART/USART | CANbus, CSIO, EBI/EMI, LINbus, UART/USART | CANbus, CSIO, EBI/EMI, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 156 | 156 | 156 | 156 | 63 | 156 | 156 | 156 |
| Program Memory Size | 1.0625MB (1.0625M x 8) | 1.0625MB (1.0625M x 8) | 576KB (576K x 8) | 576KB (576K x 8) | 1.0625MB (1.0625M x 8) | 1.0625MB (1.0625M x 8) | 1.0625MB (1.0625M x 8) | 1.0625MB (1.0625M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 |
| RAM Size | 872K x 8 | 872K x 8 | 308K x 8 | 848K x 8 | 72K x 8 | 872K x 8 | 872K x 8 | 872K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 32x8/10b | A/D 32x8/10b | A/D 32x8/10b | A/D 32x8/10b | A/D 32x10b | A/D 32x8/10b | A/D 32x8/10b | A/D 32x8/10b |
| Oscillator Type | External | External | External | External | External | External | External | External |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 208-LQFP | 208-LQFP | 208-LQFP | 208-LQFP | 208-LQFP | 208-LQFP | 208-LQFP | 208-LQFP |
| Supplier Device Package | 208-LQFP (28x28) | 208-LQFP (28x28) | 208-LQFP (28x28) | 208-LQFP (28x28) | 208-LQFP (28x28) | 208-LQFP (28x28) | 208-LQFP (28x28) | 208-LQFP (28x28) |
