Please send RFQ , we will respond immediately.
| Part Number | MB90214PF-GT-307-BND-AE1 | MB90214PF-GT-308-BND-AE1 | MB90214PF-GT-309-BND-AE1 | MB90214PF-GT-347-BND-AE1 | MB90214PF-GT-304-BND-AE1 | MB90214PF-GT-305-BND-AE1 | MB90214PF-GT-306-BND-AE1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Cypress Semiconductor Corp | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | F²MC-16F | F²MC-16F | F²MC-16F | F²MC-16F | F²MC-16F | F²MC-16F | F²MC-16F |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 16MHz | 16MHz | 16MHz | 16MHz | 16MHz | 16MHz | 16MHz |
| Connectivity | EBI/EMI, UART/USART | EBI/EMI, UART/USART | EBI/EMI, UART/USART | EBI/EMI, UART/USART | EBI/EMI, UART/USART | EBI/EMI, UART/USART | EBI/EMI, UART/USART |
| Peripherals | POR, WDT | POR, WDT | POR, WDT | POR, WDT | POR, WDT | POR, WDT | POR, WDT |
| Number of I/O | 65 | 65 | 65 | 65 | 65 | 65 | 65 |
| Program Memory Size | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | Mask ROM | Mask ROM | Mask ROM | Mask ROM | Mask ROM | Mask ROM | Mask ROM |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 3K x 8 | 3K x 8 | 3K x 8 | 3K x 8 | 3K x 8 | 3K x 8 | 3K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b |
| Oscillator Type | External | External | External | External | External | External | External |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

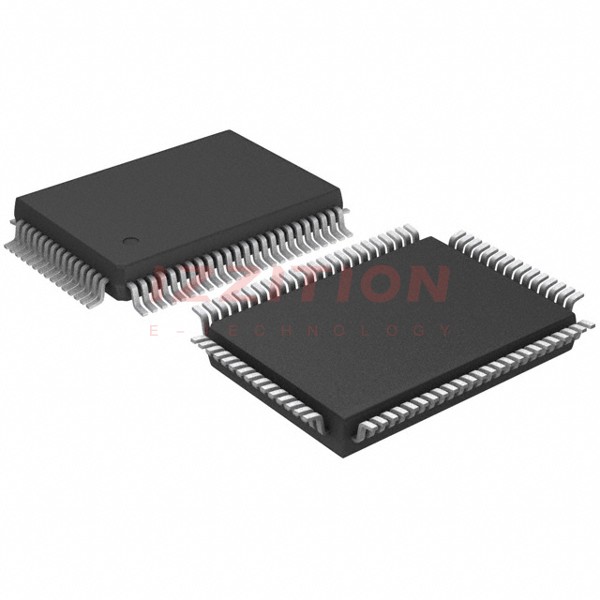

| Package / Case | 80-BQFP | 80-BQFP | 80-BQFP | 80-BQFP | 80-BQFP | 80-BQFP | 80-BQFP |
| Supplier Device Package | 80-QFP (14x20) | 80-QFP (14x20) | 80-QFP (14x20) | 80-QFP (14x20) | 80-QFP (14x20) | 80-QFP (14x20) | 80-QFP (14x20) |
