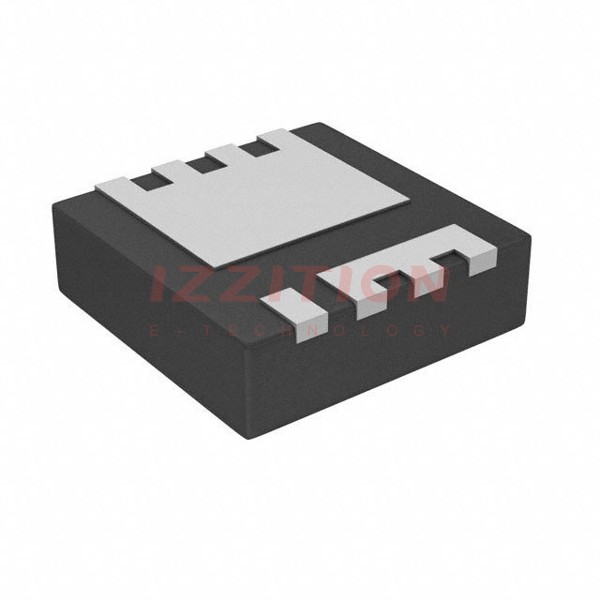

| Part Number | ISZ019N03L5SATMA1 | ISC019N03L5SATMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta), 40A (Tc) | 28A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.9mOhm @ 20A, 10V | 1.9mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 44 nC @ 10 V | 44 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2800 pF @ 15 V | 2800 pF @ 15 V |
| FET Feature | - | - |
| Power Dissipation (Max) | - | 2.5W (Ta), 69W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TSDSON-8-FL | PG-TDSON-8-5 |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN |
