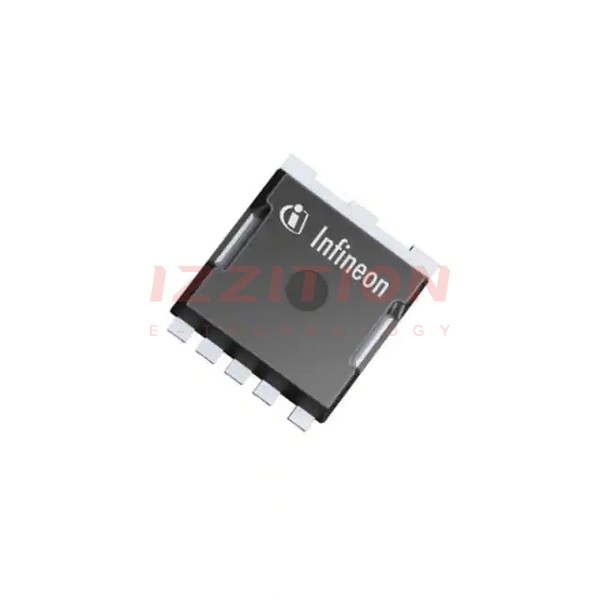

| Part Number | IST015N06NM5AUMA1 | IST011N06NM5AUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Ta), 242A (Tc) | 38A (Ta), 399A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1.5mOhm @ 50A, 10V | 1.1mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 3.3V @ 95µA | 3.3V @ 148µA |
| Gate Charge (Qg) (Max) @ Vgs | 89 nC @ 10 V | 154 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5200 pF @ 30 V | 8100 pF @ 30 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.8W (Ta), 167W (Tc) | 3.8W (Ta), 313W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-HSOF-5-1 | PG-HSOF-5-1 |
| Package / Case | 5-PowerSFN | 5-PowerSFN |
