| Part Number | ISO1H815GAUMA1 | ISO1H816GAUMA1 | ISO1H811GAUMA1 | ISO1H812GAUMA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| Switch Type | Relay, Solenoid Driver | Relay, Solenoid Driver | Relay, Solenoid Driver | Relay, Solenoid Driver |
| Number of Outputs | 8 | 8 | 8 | 8 |
| Ratio - Input:Output | 1:1 | 1:8 | 1:1 | 1:8 |
| Output Configuration | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | Parallel | SPI | Parallel | SPI |
| Voltage - Load | 11V ~ 35V | 11V ~ 35V | 11V ~ 35V | 11V ~ 35V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Current - Output (Max) | 1.2A | 1.2A | 625mA | 625mA |
| Rds On (Typ) | 150mOhm | 150mOhm | 150mOhm | 150mOhm |
| Input Type | - | - | - | - |
| Features | Auto Restart, Galvanic Isolation, Status Flag | Auto Restart, Galvanic Isolation, Status Flag | Auto Restart | Auto Restart, Galvanic Isolation, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -25°C ~ 125°C (TJ) | -25°C ~ 125°C (TJ) | -25°C ~ 125°C (TJ) | -25°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-DSO-36 | PG-DSO-36 | PG-DSO-36 | PG-DSO-36 |

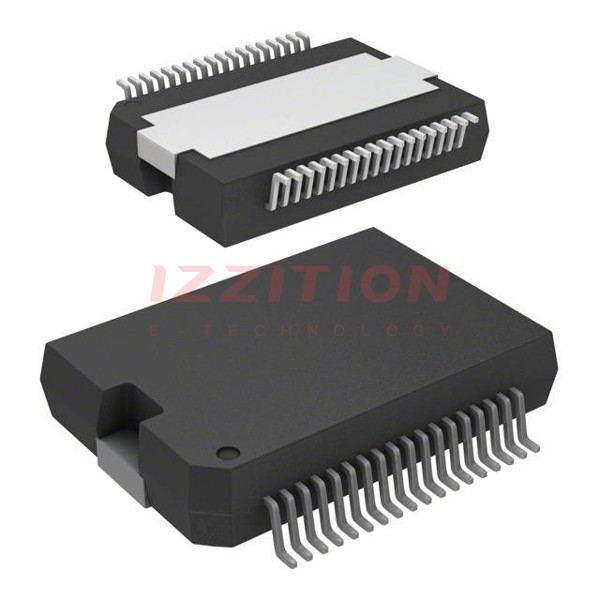

| Package / Case | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad |
