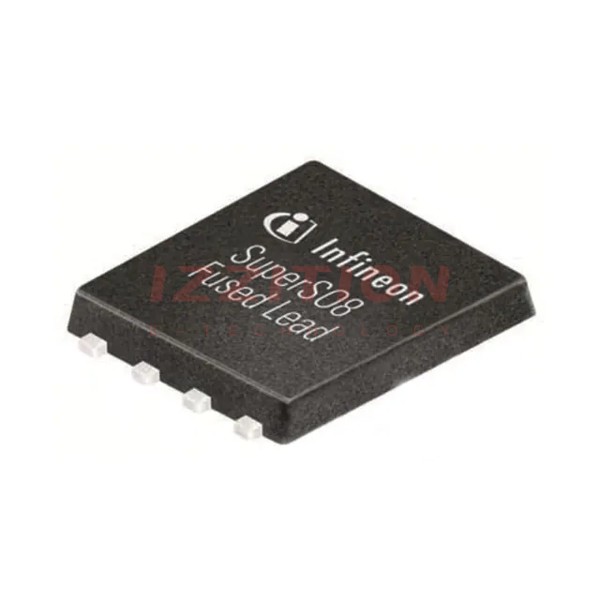

| Part Number | ISC230N10NM6ATMA1 | ISZ230N10NM6ATMA1 | ISC030N10NM6ATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 7.7A (Ta), 31A (Tc) | 7.7A (Ta), 31A (Tc) | 21A (Ta), 179A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V | 8V, 10V | 8V, 10V |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 10A, 10V | 23mOhm @ 10A, 10V | 3mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.3V @ 13µA | 3.3V @ 13µA | 3.3V @ 109µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.3 nC @ 10 V | 9.3 nC @ 10 V | 69 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 690 pF @ 50 V | 690 pF @ 50 V | 5200 pF @ 50 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 3W (Ta), 48W (Tc) | 3W (Ta), 48W (Tc) | 3W (Ta), 208W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TDSON-8 FL | PG-TSDSON-8 FL | PG-TDSON-8 FL |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
