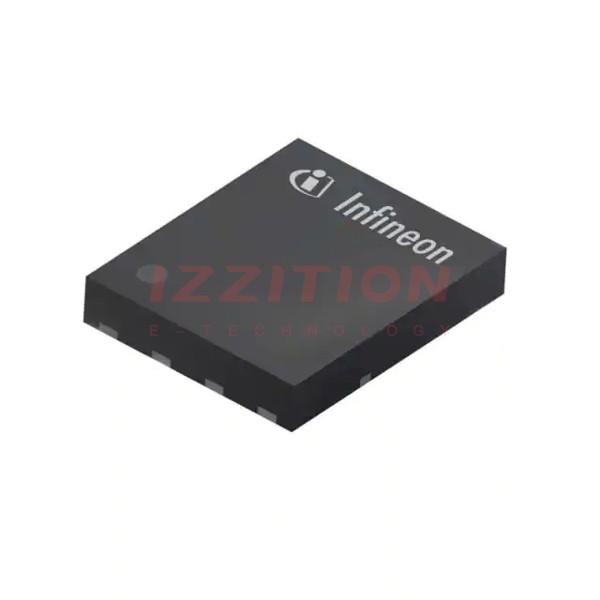

| Part Number | ISC022N10NM6ATMA1 | ISC027N10NM6ATMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Ta), 230A (Tc) | 23A (Ta), 192A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V | 8V, 10V |
| Rds On (Max) @ Id, Vgs | 2.24mOhm @ 50A, 10V | 2.7mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.3V @ 147µA | 3.3V @ 116µA |
| Gate Charge (Qg) (Max) @ Vgs | 91 nC @ 10 V | 72.5 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6880 pF @ 50 V | 5500 pF @ 50 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3W (Ta), 254W (Tc) | 3W (Ta), 217W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TSON-8-3 | PG-TDSON-8 FL |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN |
