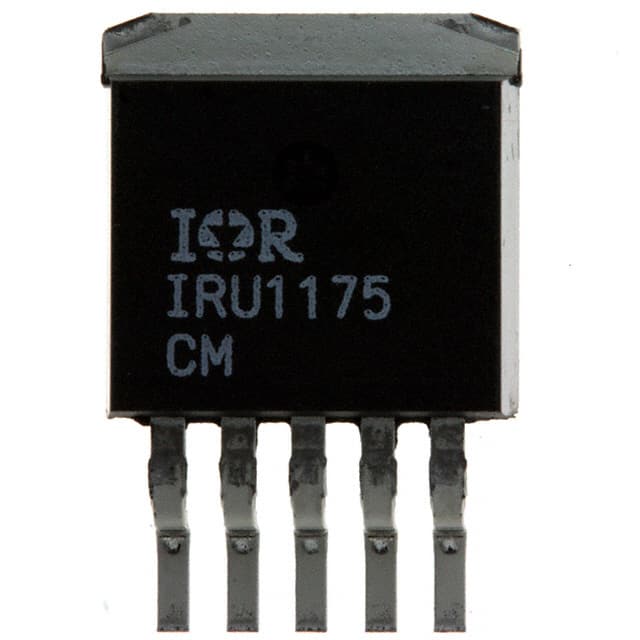

| Part Number | IRU1175CMTR | IRU1175CSTR | IRU1176CMTR |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 7V |
| Voltage - Output (Min/Fixed) | 1.25V | 1.25V | 1.25V |
| Voltage - Output (Max) | 5.5V | 5.5V | 5.5V |
| Voltage Dropout (Max) | 1.3V @ 7.5A | 1.3V @ 7.5A | 1.15V @ 7.5A (Typ) |
| Current - Output | 7.5A | 7.5A | 7.5A |
| Current - Quiescent (Iq) | 10 mA | 10 mA | 10 mA |
| Current - Supply (Max) | - | - | - |
| PSRR | 70dB (120Hz) | 70dB (120Hz) | 70dB (120Hz) |
| Control Features | - | - | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | 8-SOIC (0.154", 3.90mm Width) | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Supplier Device Package | TO-263-5 | 8-SOIC | D2PAK (7-Lead) |
