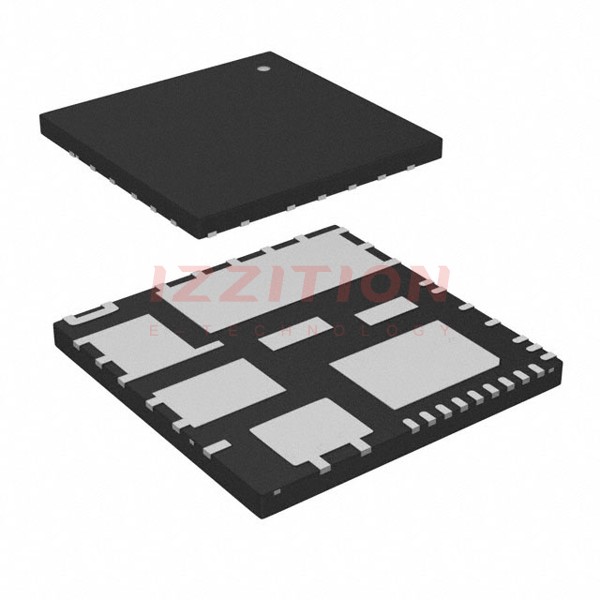

| Part Number | IRSM836-045MA | IRSM836-025MA | IRSM836-035MA | IRSM836-044MA |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| Motor Type - Stepper | - | - | - | - |
| Motor Type - AC, DC | AC, Synchronous | AC, Synchronous | AC, Synchronous | AC, Synchronous |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (3) | Half Bridge (3) | Half Bridge (3) | Half Bridge (3) |
| Interface | Parallel | Parallel | Parallel | Parallel |
| Technology | UMOS | UMOS | UMOS | UMOS |
| Step Resolution | - | - | - | - |
| Applications | Appliance | Appliance | Appliance | Appliance |
| Current - Output | 4A | 2A | 3A | 4A |
| Voltage - Supply | 13.5V ~ 16.5V | 13.5V ~ 16.5V | 13.5V ~ 16.5V | 13.5V ~ 16.5V |
| Voltage - Load | 400V (Max) | 400V (Max) | 400V (Max) | 200V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 37-PowerVQFN | 36-PowerVQFN | 36-PowerVQFN | 36-PowerVQFN |
| Supplier Device Package | 37-PQFN (12x12) | 36-PQFN (12x12) | 36-PQFN (12x12) | 36-PQFN (12x12) |
