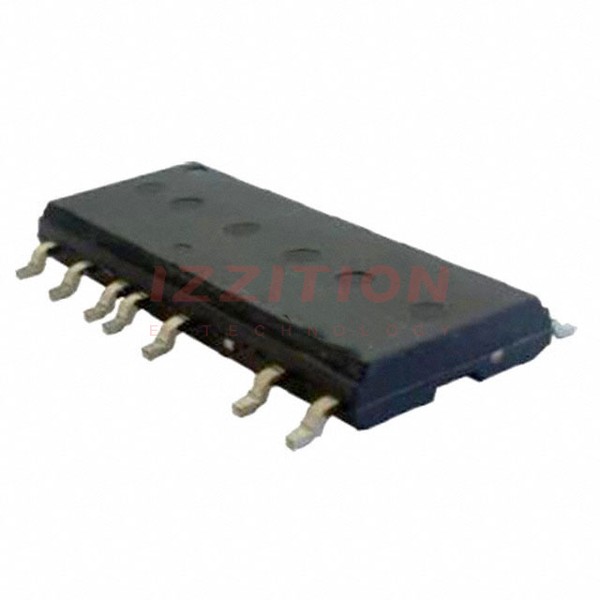

IRSM515-035PATR Image
×
Favorite
Compare
Add to RFQ
Share:
Infineon Technologies IRSM515-035PATR
Manufacturer No:
IRSM515-035PATR
Manufacturer:
Infineon Technologies
Package:
Tape & Reel (TR)
Datasheet:
IRSM515-035PATR Datasheet
ECAD Model:
-
Description:
MICRO MCM
Delivery:
Payment:
Product Attributes
Output Configuration:
Half Bridge (3)
Applications:
AC Motors
Interface:
Logic
Load Type:
Inductive
Technology:
UMOS
Rds On (Typ):
1.8Ohm
Current - Output / Channel:
2.1A
Current - Peak Output:
15A
Voltage - Supply:
13.5V ~ 16.5V
Voltage - Load:
400V (Max)
Operating Temperature:
-40°C ~ 150°C (TJ)
Features:
Bootstrap Circuit
Fault Protection:
UVLO
Mounting Type:
Surface Mount
Package / Case:
32-PowerSMD Module, 23 Leads
Supplier Device Package:
23-SOP
0
Remaining
View Similar
In Stock
UnitPrice:
$6.65
Quantity:
75
