Please send RFQ , we will respond immediately.

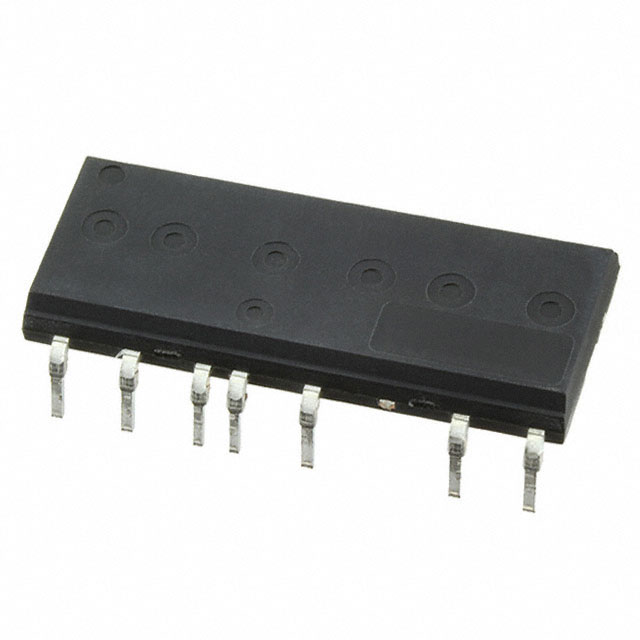

| Part Number | IRSM506-076DA | IRSM506-076PA | IRSM516-076DA |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Discontinued at Digi-Key |
| Output Configuration | Half Bridge (3) | Half Bridge (3) | Half Bridge (3) |
| Applications | AC Motors | AC Motors | AC Motors |
| Interface | Logic | Logic | Logic |
| Load Type | Inductive | Inductive | Inductive |
| Technology | IGBT | IGBT | IGBT |
| Rds On (Typ) | - | - | - |
| Current - Output / Channel | 4A | 4A | 4A |
| Current - Peak Output | 15A | 15A | 15A |
| Voltage - Supply | 13.5V ~ 16.5V | 13.5V ~ 16.5V | 13.5V ~ 16.5V |
| Voltage - Load | 480V (Max) | 480V (Max) | 480V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit | Bootstrap Circuit | Bootstrap Circuit |
| Fault Protection | UVLO | UVLO | UVLO |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Package / Case | 32-PowerDIP Module, 23 Leads | 32-PowerSMD Module, 23 Leads | 32-PowerDIP Module, 23 Leads |
| Supplier Device Package | 23-DIP | 23-SOP | 23-DIP |
