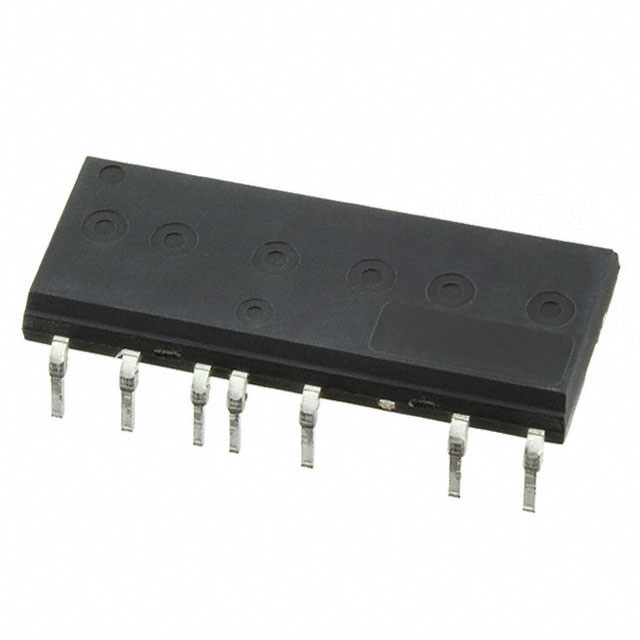

| Part Number | IRSM505-084DA | IRSM505-084PA |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Half Bridge (3) | Half Bridge (3) |
| Applications | AC Motors | AC Motors |
| Interface | Logic | Logic |
| Load Type | Inductive | Inductive |
| Technology | UMOS | UMOS |
| Rds On (Typ) | 340mOhm | 340mOhm |
| Current - Output / Channel | 4.6A | 4.6A |
| Current - Peak Output | 15A | 15A |
| Voltage - Supply | 13.5V ~ 16.5V | 13.5V ~ 16.5V |
| Voltage - Load | 200V (Max) | 200V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit | Bootstrap Circuit |
| Fault Protection | UVLO | UVLO |
| Mounting Type | Through Hole | Surface Mount |
| Package / Case | 23-DIP Module | 32-PowerSMD Module, 23 Leads |
| Supplier Device Package | 23-DIP | 23-SOP |
