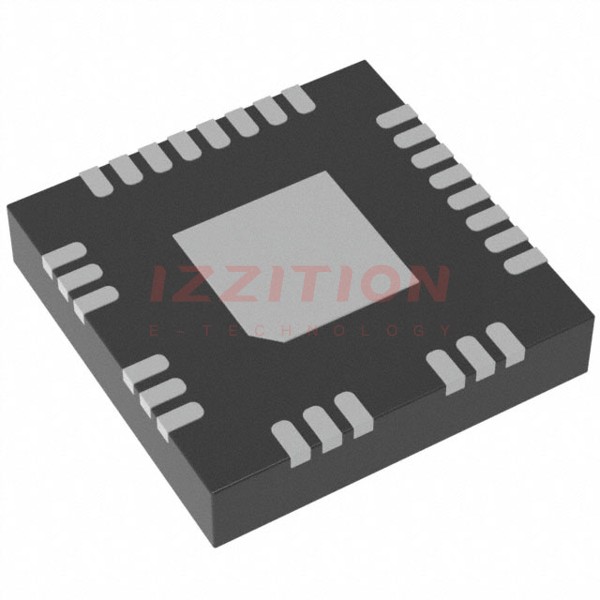

| Part Number | IRS2334MTRPBF | IRS2334STRPBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge |
| Channel Type | 3-Phase | 3-Phase |
| Number of Drivers | 6 | 6 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 200mA, 350mA | 200mA, 350mA |
| Input Type | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V | 600 V |
| Rise / Fall Time (Typ) | 125ns, 50ns | 125ns, 50ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 28-VFQFN Exposed Pad | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-MLPQ (5x5) | 20-SOIC |
