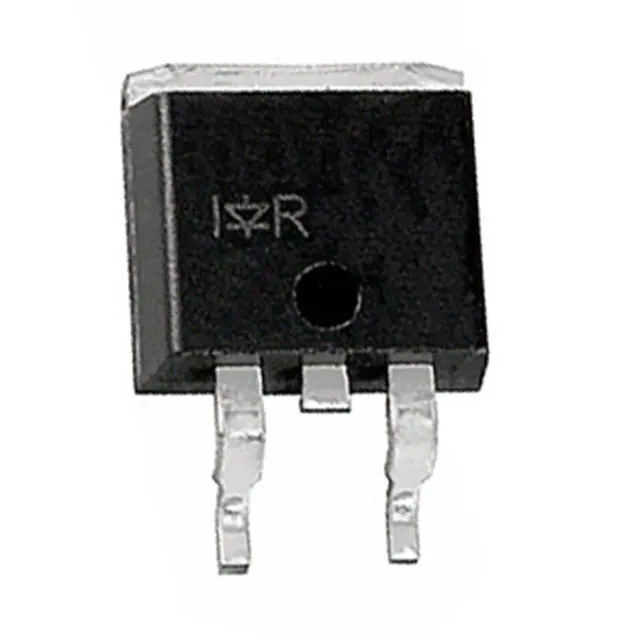

| Part Number | IRLZ44NSTRR | IRLZ44STRR | IRLZ24NSTRR | IRLZ34NSTRR |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Vishay Siliconix | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V | 60 V | 55 V | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 47A (Tc) | 50A (Tc) | 18A (Tc) | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | 4V, 5V | 4V, 10V | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 25A, 10V | 28mOhm @ 31A, 5V | 60mOhm @ 11A, 10V | 35mOhm @ 16A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 2V @ 250µA | 2V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 48 nC @ 5 V | 66 nC @ 5 V | 15 nC @ 5 V | 25 nC @ 5 V |
| Vgs (Max) | ±16V | ±10V | ±16V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 1700 pF @ 25 V | 3300 pF @ 25 V | 480 pF @ 25 V | 880 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 3.8W (Ta), 110W (Tc) | 3.7W (Ta), 150W (Tc) | 3.8W (Ta), 45W (Tc) | 3.8W (Ta), 68W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | D2PAK | D²PAK (TO-263) | D2PAK | D2PAK |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
