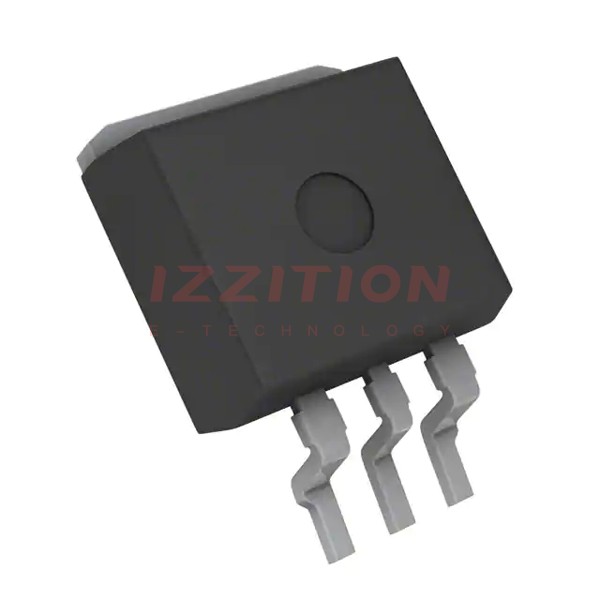

| Part Number | IRLU8721-701PBF | IRLU8729-701PBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 65A (Tc) | 58A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8.4mOhm @ 25A, 10V | 8.9mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA | 2.35V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 4.5 V | 16 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1030 pF @ 15 V | 1350 pF @ 15 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 65W (Tc) | 55W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | I-PAK (LF701) | I-PAK (LF701) |
| Package / Case | TO-252-4, DPak (3 Leads + Tab) | TO-252-4, DPak (3 Leads + Tab) |
