Please send RFQ , we will respond immediately.

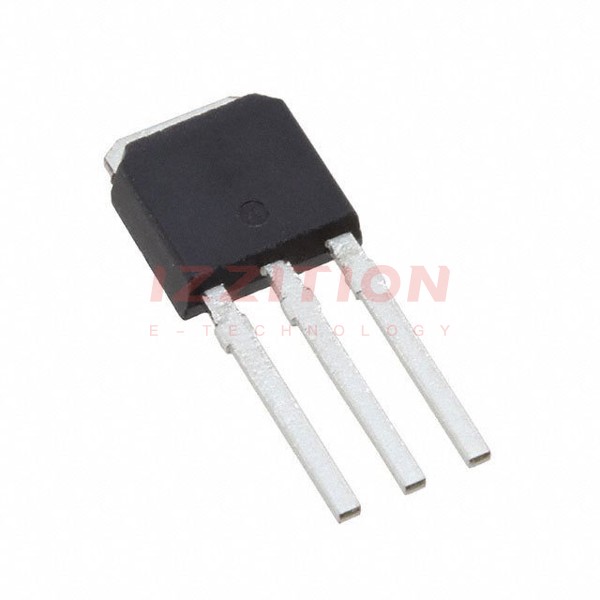

| Part Number | IRLU3715ZPBF | IRLU3705ZPBF | IRLU3714ZPBF | IRLU3715PBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 55 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 49A (Tc) | 42A (Tc) | 37A (Tc) | 54A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 15A, 10V | 8mOhm @ 42A, 10V | 15mOhm @ 15A, 10V | 14mOhm @ 26A, 10V |
| Vgs(th) (Max) @ Id | 2.55V @ 250µA | 3V @ 250µA | 2.55V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC @ 4.5 V | 66 nC @ 5 V | 7.1 nC @ 4.5 V | 17 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±16V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 810 pF @ 10 V | 2900 pF @ 25 V | 560 pF @ 10 V | 1060 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 40W (Tc) | 130W (Tc) | 35W (Tc) | 3.8W (Ta), 71W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I-PAK | IPAK (TO-251AA) | I-PAK | I-PAK |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
