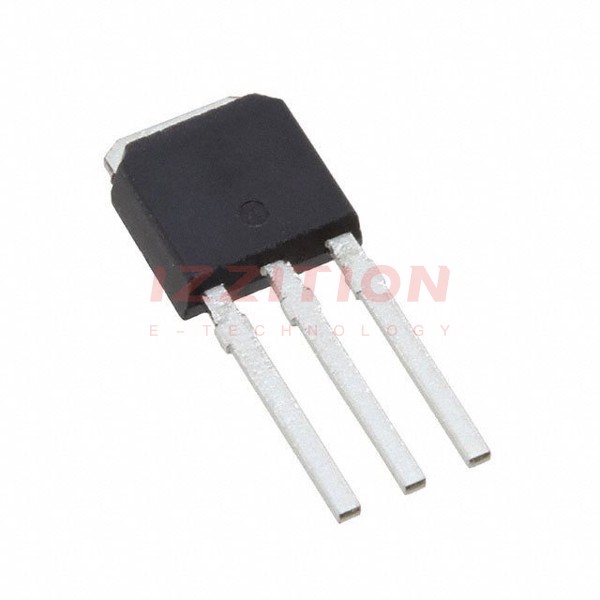

| Part Number | IRLU3714PBF | IRLU3717PBF | IRLU3715PBF | IRLU3714ZPBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Tc) | 120A (Tc) | 54A (Tc) | 37A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 18A, 10V | 4mOhm @ 15A, 10V | 14mOhm @ 26A, 10V | 15mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 2.45V @ 250µA | 3V @ 250µA | 2.55V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.7 nC @ 4.5 V | 31 nC @ 4.5 V | 17 nC @ 4.5 V | 7.1 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 670 pF @ 10 V | 2830 pF @ 10 V | 1060 pF @ 10 V | 560 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 47W (Tc) | 89W (Tc) | 3.8W (Ta), 71W (Tc) | 35W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I-PAK | I-PAK | I-PAK | I-PAK |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
