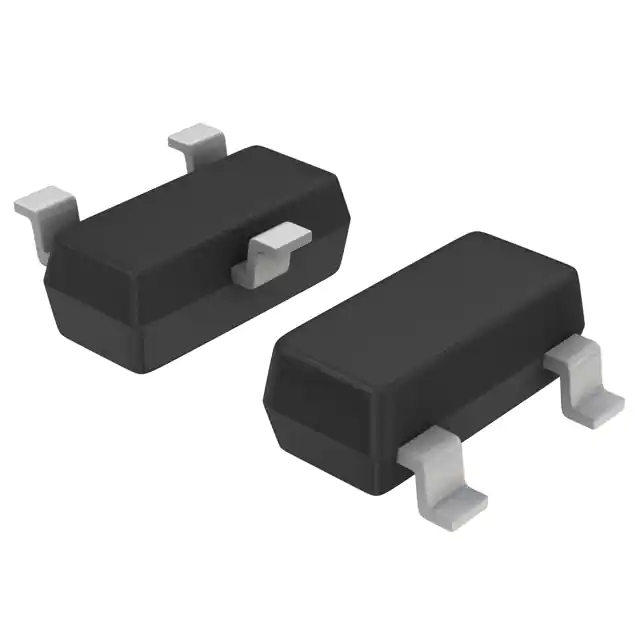

| Part Number | IRLML6401TR | IRLML6402TR |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4.3A (Ta) | 3.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 4.3A, 4.5V | 65mOhm @ 3.7A, 4.5V |
| Vgs(th) (Max) @ Id | 950mV @ 250µA | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 5 V | 12 nC @ 5 V |
| Vgs (Max) | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 830 pF @ 10 V | 633 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | - | - |
| Operating Temperature | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | Micro3™/SOT-23 | Micro3™/SOT-23 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
