Infineon Technologies-IRLML5203 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	98mOhm @ 3A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	14 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	510 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	1.25W (Ta)
Operating Temperature:	-
Mounting Type:	Surface Mount
Supplier Device Package:	Micro3™/SOT-23
Package / Case:	TO-236-3, SC-59, SOT-23-3

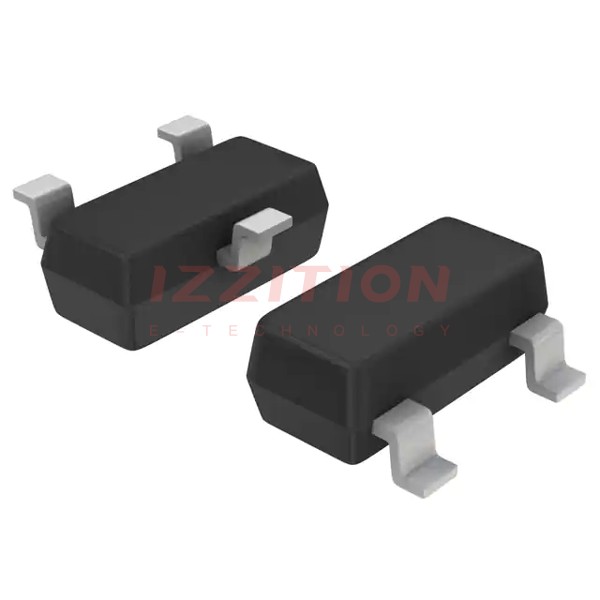

Infineon Technologies IRLML5203
