Infineon Technologies-IRLML5103TR - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	760mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	600mOhm @ 600mA, 10V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	5.1 nC @ 10 V
Vgs (Max):	-
Input Capacitance (Ciss) (Max) @ Vds:	75 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	-
Operating Temperature:	-
Mounting Type:	Surface Mount
Supplier Device Package:	Micro3™/SOT-23
Package / Case:	TO-236-3, SC-59, SOT-23-3

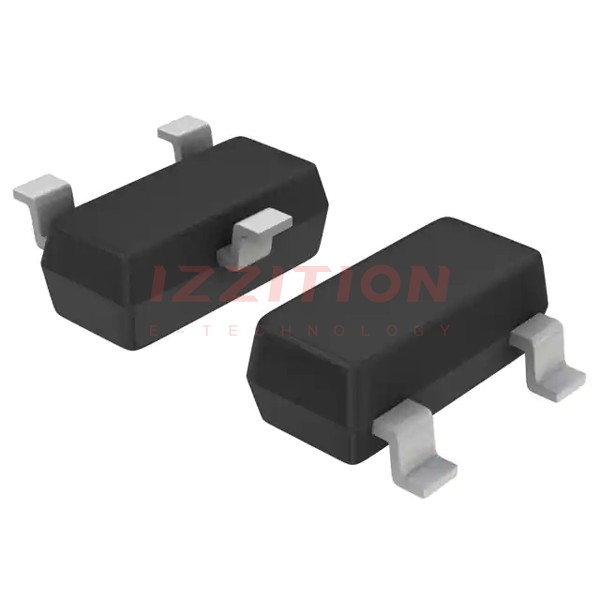

Infineon Technologies IRLML5103TR
