Infineon Technologies-IRLML0100TRPBF - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	1.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	220mOhm @ 1.6A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 25µA
Gate Charge (Qg) (Max) @ Vgs:	2.5 nC @ 4.5 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	290 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	1.3W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	Micro3™/SOT-23
Package / Case:	TO-236-3, SC-59, SOT-23-3

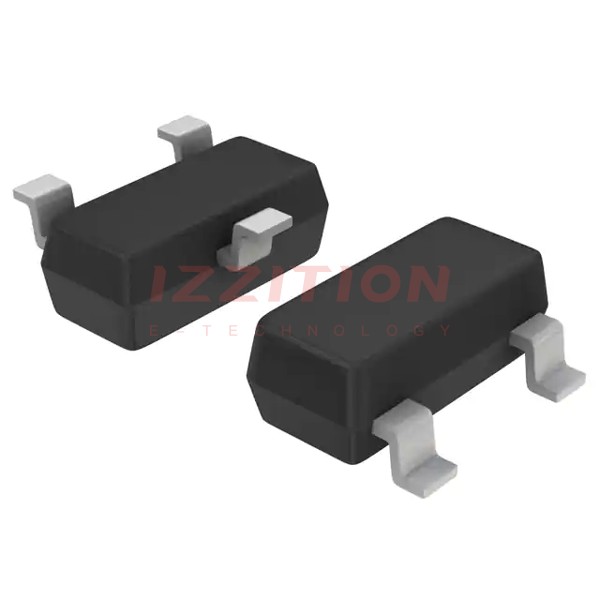

Infineon Technologies IRLML0100TRPBF
