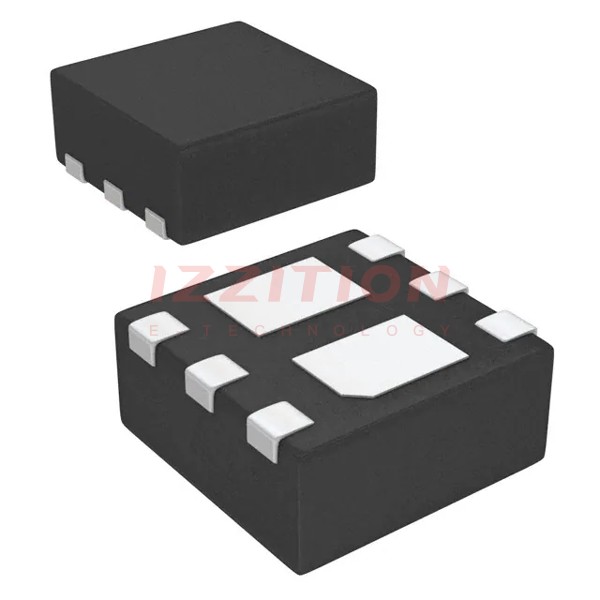

| Part Number | IRLHS6376TRPBF | IRLHS6276TRPBF | IRLHS6376TR2PBF |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Obsolete |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 20V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 3.6A | 4.5A | 3.6A |
| Rds On (Max) @ Id, Vgs | 63mOhm @ 3.4A, 4.5V | 45mOhm @ 3.4A, 4.5V | 63mOhm @ 3.4A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 10µA | 1.1V @ 10µA | 1.1V @ 10µA |
| Gate Charge (Qg) (Max) @ Vgs | 2.8nC @ 4.5V | 3.1nC @ 4.5V | 2.8nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 270pF @ 25V | 310pF @ 10V | 270pF @ 25V |
| Power - Max | 1.5W | 1.5W | 1.5W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad | 6-VQFN | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-PQFN (2x2) | 6-PQFN (2x2) | 6-PQFN (2x2) |
